770174 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

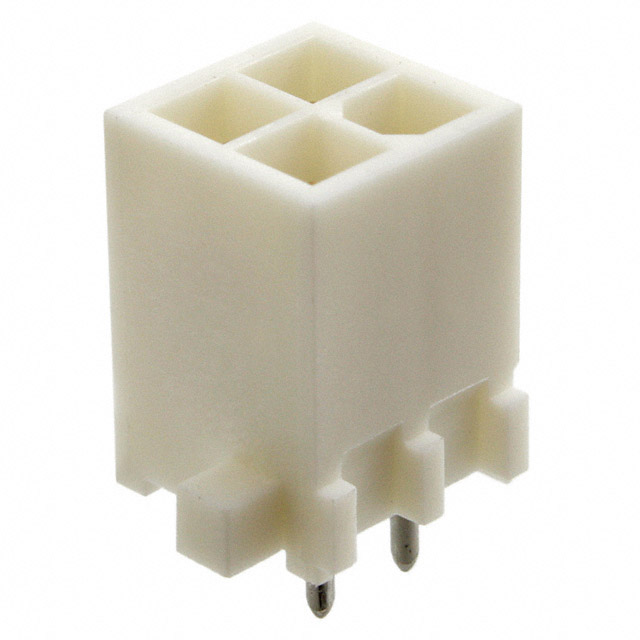

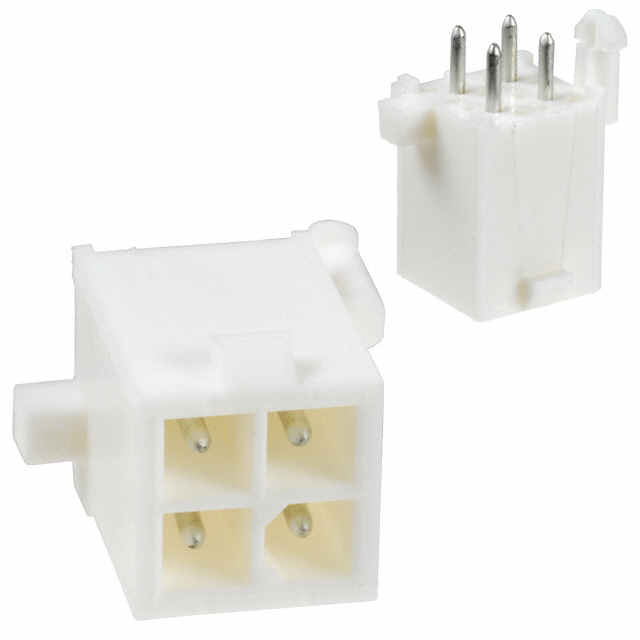

CONN HEADER VERT 4POS 4.14MM
| Part | Number of Positions Loaded | Contact Type | Insulation Material | Contact Finish - Mating | Connector Type | Number of Positions | Insulation Height | Insulation Height | Contact Material | Style | Applications | Number of Rows | Termination | Insulation Color | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Current Rating (Amps) | Fastening Type | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | All | Male Pin | Nylon Polyamide (PA) | Gold | Header | 4 | 13.5 mm | 0.531 in | Brass | Board to Cable/Wire | General Purpose | 2 | Solder | White | Circular | 150 Áin | 3.81 Ám | Through Hole | 30 Áin | 0.76 Ám | 600 VAC | Varies by Wire Gauge | Locking Ramp | 4.45 mm | 0.175 in | 4.14 mm | 0.163 in | 4.14 mm | 0.163 in | UL94 V-0 | -20 C | 105 ░C | Tin-Lead | Shrouded - 4 Wall |
TE Connectivity Raychem Cable Protection | All | Male Pin | Nylon Polyamide (PA) | Header | 4 | 13.5 mm | 0.531 in | Brass | Board to Cable/Wire | General Purpose | 2 | Solder | Black | Circular | 150 Áin | 3.81 Ám | Through Hole | 150 Áin | 3.81 Ám | 600 VAC | Varies by Wire Gauge | Locking Ramp | 4.45 mm | 0.175 in | 4.14 mm | 0.163 in | 4.14 mm | 0.163 in | UL94 V-0 | -20 C | 85 °C | Tin | Shrouded - 4 Wall | |
 TE Connectivity Raychem Cable Protection | All | Male Pin | Nylon Polyamide (PA) | Header | 4 | 13.5 mm | 0.531 in | Brass | Board to Cable/Wire | General Purpose | 2 | Solder | White | Circular | 150 Áin | 3.81 Ám | Through Hole | 150 Áin | 3.81 Ám | 600 VAC | Varies by Wire Gauge | Locking Ramp | 4.45 mm | 0.175 in | 4.14 mm | 0.163 in | 4.14 mm | 0.163 in | UL94 V-0 | -20 C | 85 °C | Tin | Shrouded - 4 Wall | |
TE Connectivity Raychem Cable Protection | All | Male Pin | Nylon Polyamide (PA) | Tin-Lead | Header | 4 | 13.5 mm | 0.531 in | Brass | Board to Cable/Wire | General Purpose | 2 | Solder | White | Circular | 150 Áin | 3.81 Ám | Through Hole | 150 Áin | 3.81 Ám | 600 VAC | Varies by Wire Gauge | Locking Ramp | 4.45 mm | 0.175 in | 4.14 mm | 0.163 in | 4.14 mm | 0.163 in | UL94 V-0 | -20 C | 85 °C | Tin-Lead | Shrouded - 4 Wall |
