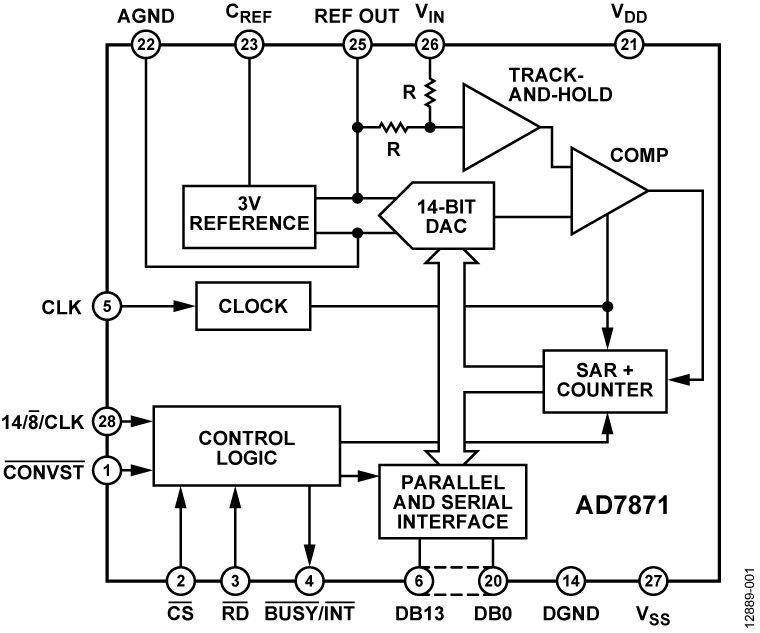

AD7871 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
CMOS, COMPLETE 14-BIT, SAMPLING ADC WITH THREE DATA OUTPUT FORMATS
| Part | Number of A/D Converters | Voltage - Supply, Analog (Max) | Voltage - Supply, Analog (Min) | Data Interface | Number of Bits | Number of Inputs | Package / Case | Sampling Rate (Per Second) | Operating Temperature (Max) | Operating Temperature (Min) | Package Length | Package Name | Package Width | Mounting Type | Architecture | Ratio - ADC | Ratio - S/H | Voltage - Supply, Digital Tolerance | Voltage - Supply, Digital | Input Type | Configuration | Reference Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 28-LCC (J-Lead) | 83 kHz | 70 °C | 0 °C | 11.51 mm | 28-PLCC | 11.51 mm | Surface Mount | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal |
 Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 83 kHz | 70 °C | 0 °C | 0.6 in | 28-DIP 28-PDIP | 15.24 mm | Through Hole | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal | |
Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 28-LCC (J-Lead) | 83 kHz | 70 °C | 0 °C | 11.51 mm | 28-PLCC | 11.51 mm | Surface Mount | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal |
 Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel Serial | 14 bits | 1 | 28-LCC (J-Lead) | 83 kHz | 70 °C | 0 °C | 11.51 mm | 28-PLCC | 11.51 mm | Surface Mount | SAR | 1 | 0 | 5 % | 5 V | Single Ended | ADC | Internal |
 Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 83 kHz | 125 °C | -55 °C | 0.6 in | 28-CDIP | 15.24 mm | Through Hole | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal | |
 Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 28-LCC (J-Lead) | 83 kHz | 70 °C | 0 °C | 11.51 mm | 28-PLCC | 11.51 mm | Surface Mount | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal |
Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 28-LCC (J-Lead) | 83 kHz | 70 °C | 0 °C | 11.51 mm | 28-PLCC | 11.51 mm | Surface Mount | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal |
Analog Devices Inc./Maxim Integrated | 1 count | 5 V | -5 V | Parallel SPI | 14 bits | 1 | 28-LCC (J-Lead) | 83 kHz | 70 °C | 0 °C | 11.51 mm | 28-PLCC | 11.51 mm | Surface Mount | SAR | 1 | 1 | 5 % | 5 V | Single Ended | S/H-ADC | Internal |
