SF1122 Series

Catalog

BZ FEMALE TO SMA FEMALE ADAPTER /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Part	Center Contact Material	Body Material	Mating Cycles	Dielectric Material	Convert From (Adapter End)	Conversion Type	Style	Mounting Type	Adapter Type	Fastening Type	Frequency - Max	Impedance	Center Gender	Center Contact Plating	Adapter Series	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Features	Convert To (Adapter End)

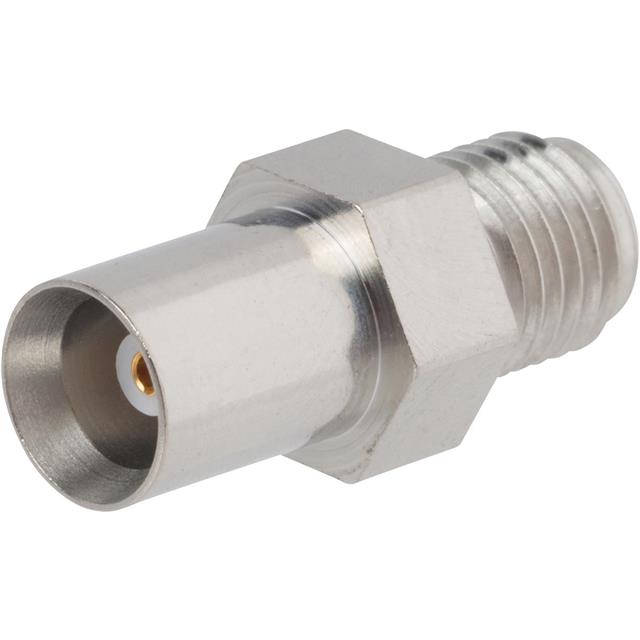

McGill Microwave Systems SF1122-6108	Beryllium Copper	Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	BZ Jack Female Socket	Between Series	Straight	Free Hanging (In-Line)	Jack to Jack	Snap-On Threaded	2 GHz	50 Ohm	Female	Gold	SMA to BZ	Female Socket	SMA Jack
McGill Microwave Systems SF1122-6106	Beryllium Copper	Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	BZ Jack Female Socket	Between Series	Straight	Free Hanging (In-Line)	Plug to Jack	Snap-On Threaded	2 GHz	50 Ohm	Female Male	Gold	SMA to BZ	Male Pin	SMA Plug

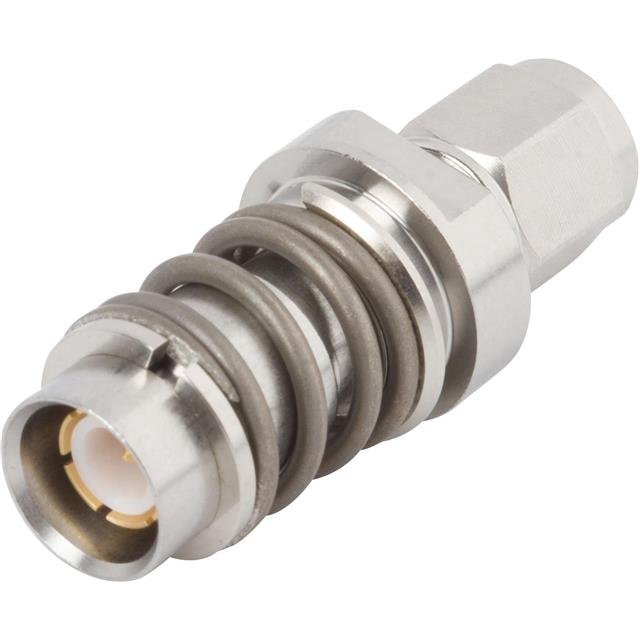

McGill Microwave Systems SF1122-6102	Beryllium Copper	Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	BZ Plug Male Pin	Between Series	Straight	Free Hanging (In-Line)	Plug to Plug	Snap-On Threaded	12 Gbps	50 Ohm	Male	Gold	SMA to BZ	Male Pin	SMA Plug

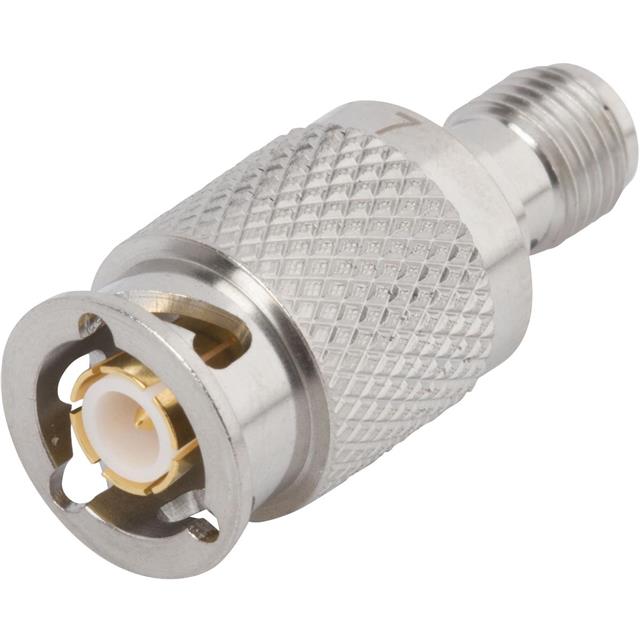

McGill Microwave Systems SF1122-6033	Beryllium Copper	Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Between Series	Straight	Free Hanging (In-Line)	Plug to Jack	Bayonet Lock Threaded	12.4 GHz	50 Ohm	Female Male	Gold	SMA to ZMA			Three Lug	Male Pin ZMA Plug

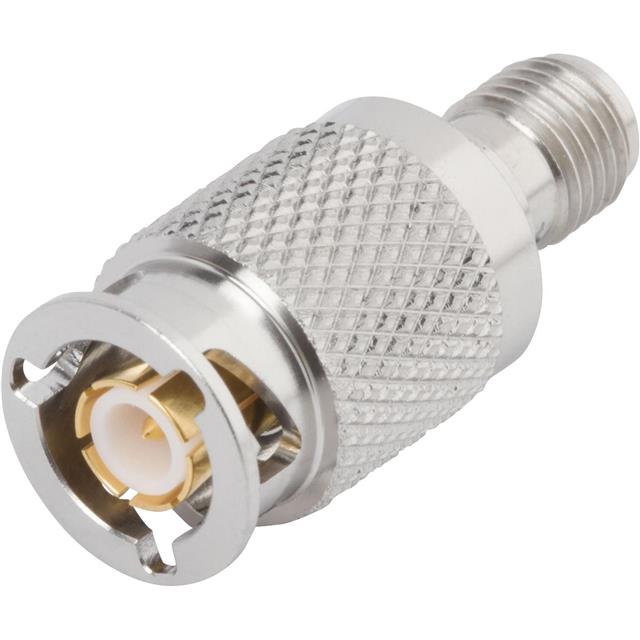

McGill Microwave Systems SF1122-6031	Beryllium Copper	Stainless Steel	500 cycles	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	Between Series	Straight	Free Hanging (In-Line)	Plug to Jack	Bayonet Lock Threaded	12.4 GHz	50 Ohm	Female Male	Gold	SMA to ZMA			Four Lug	Male Pin ZMA Plug
