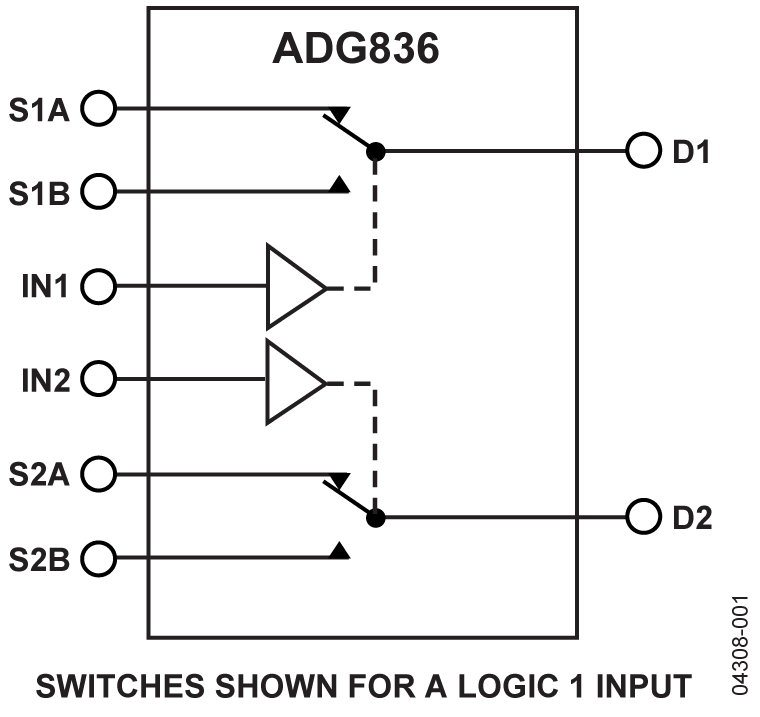

ADG836 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC SWITCH SPDTX2 650MOHM 10MSOP

Part	Voltage - Supply, Single (V+) (Maximum)	Voltage - Supply, Single (V+) (Minimum)	Multiplexer Inputs	Demultiplexer Outputs	On-State Resistance (Max)	Channel Capacitance (CS(off))	Channel Capacitance (CD(off))	Number of Circuits	-3db Bandwidth	Mounting Type	Switch Circuit Type	Switch Time Toff (Max)	Switch Time Ton (Max)	Package Name	Charge Injection	Current - Leakage (Typical)	Package Length	Package Width	Crosstalk	Operating Temperature (Max)	Operating Temperature (Min)	Channel-to-Channel Matching (ΔRon)	Package / Case
Analog Devices Inc./Maxim Integrated ADG836YRM-REEL7	3.6 V	1.65 V	2	1	650 mOhm	25 pF	25 pF	2	57 MHz	Surface Mount	SPDT	7 ns	26 ns	10-MSOP 10-TFSOP	40 pC	200 pA	0.118 in	3 mm	-90 dB	125 °C	-40 °C	40 mOhm
Analog Devices Inc./Maxim Integrated ADG836YRMZ-REEL	3.6 V	1.65 V	2	1	650 mOhm	25 pF	25 pF	2	57 MHz	Surface Mount	SPDT	7 ns	26 ns	10-MSOP 10-TFSOP	40 pC	200 pA	0.118 in	3 mm	-90 dB	125 °C	-40 °C	40 mOhm
Analog Devices Inc./Maxim Integrated ADG836YRMZ	3.6 V	1.65 V	2	1	650 mOhm	25 pF	25 pF	2	57 MHz	Surface Mount	SPDT	7 ns	26 ns	10-MSOP 10-TFSOP	40 pC	200 pA	0.118 in	3 mm	-90 dB	125 °C	-40 °C	40 mOhm
Analog Devices Inc./Maxim Integrated ADG836YCP-REEL										Surface Mount				12-LFCSP-VQ			3 mm	3 mm					12-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG836YRMZ-REEL7	3.6 V	1.65 V	2	1	650 mOhm	25 pF	25 pF	2	57 MHz	Surface Mount	SPDT	7 ns	26 ns	10-MSOP 10-TFSOP	40 pC	200 pA	0.118 in	3 mm	-90 dB	125 °C	-40 °C	40 mOhm
Analog Devices Inc./Maxim Integrated ADG836YRM-REEL	3.6 V	1.65 V	2	1	650 mOhm	25 pF	25 pF	2	57 MHz	Surface Mount	SPDT	7 ns	26 ns	10-MSOP 10-TFSOP	40 pC	200 pA	0.118 in	3 mm	-90 dB	125 °C	-40 °C	40 mOhm
Analog Devices Inc./Maxim Integrated ADG836YCP-REEL7										Surface Mount				12-LFCSP-VQ			3 mm	3 mm					12-VFQFN Exposed Pad CSP
Analog Devices Inc./Maxim Integrated ADG836YCPZ-REEL7	3.6 V	1.65 V	2	1	650 mOhm	25 pF	25 pF	2	57 MHz	Surface Mount	SPDT	7 ns	26 ns	12-LFCSP-VQ	40 pC	200 pA	3 mm	3 mm	-90 dB	125 °C	-40 °C	40 mOhm	12-VFQFN Exposed Pad CSP
