E6D20065 Series

Catalog

DIODE SIC 650V TO220

Part	Voltage - DC Reverse (Vr) (Max)	Package Name	Grade	Current - Average Rectified (Io)	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Qualification	Voltage - Forward (Vf) (Max)	Current - Reverse Leakage	Capacitance	Technology	Package / Case	Mounting Type	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Diode Pair Count	Diode Configuration	Current - Average Rectified (Io) (per Diode)
Wolfspeed, Inc. E6D20065A	650 V	TO-220-2	Automotive	68 A	500 mA	No Recovery Time	500 mA 500 mA	AEC-Q101	1.5 V	75 µA	1277 pF	SiC (Silicon Carbide) Schottky	TO-220-2	Through Hole	175 °C	-55 °C

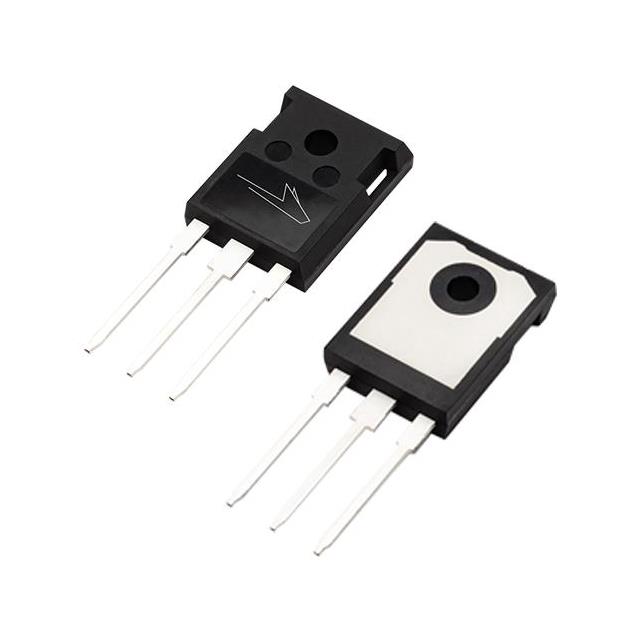

Wolfspeed, Inc. E6D20065D	650 V	TO-247-3			500 mA	No Recovery Time	500 mA 500 mA		1.5 V	50 µA		SiC (Silicon Carbide) Schottky	TO-247-3	Through Hole	175 °C	-55 °C	1 pair	Common Cathode	34 A
Wolfspeed, Inc. E6D20065H	650 V	TO-247-2	Automotive	59 A	500 mA	No Recovery Time	500 mA 500 mA	AEC-Q101	1.5 V	75 µA	1277 pF	SiC (Silicon Carbide) Schottky	TO-247-2	Through Hole	175 °C	-55 °C

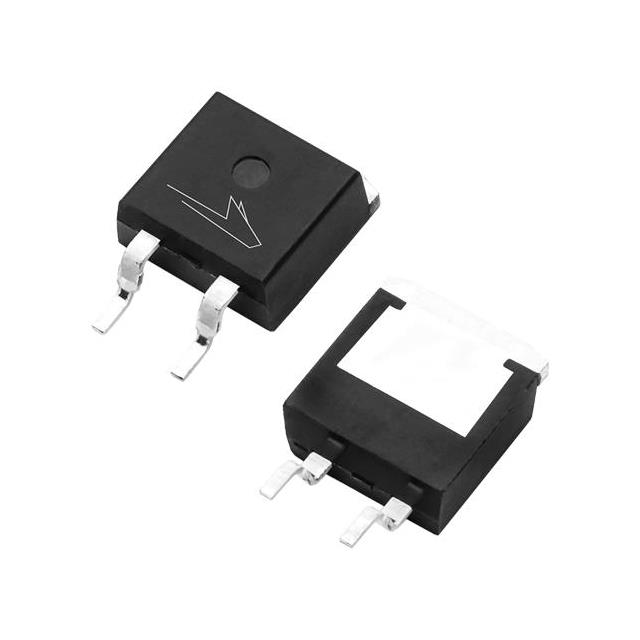

Wolfspeed, Inc. E6D20065G	650 V	TO-263-2		68 A	500 mA	No Recovery Time	500 mA 500 mA		1.5 V	75 µA	1277 pF	SiC (Silicon Carbide) Schottky	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	175 °C	-55 °C
