ADM1294 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

DIGITAL POWER MONITOR WITH PMBUSINTERFACE

Part	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Mounting Type	Voltage - I/O High	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Package Width	Package Name	Package Length	Voltage - I/O Low (Value 2)	Voltage - I/O Low (Value 1)	Current - Supply	Meter Type	Voltage - I/O Low (Value 3)	Supplied Contents	Contents	Secondary Attributes	Utilized IC / Part	Type	Function
Analog Devices Inc./Maxim Integrated ADM1294-2AACPZ	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C	16-WQFN Exposed Pad CSP	4 mm	16-LFCSP-WQ	4 mm	0.4 V	0.8 V
Analog Devices Inc./Maxim Integrated ADM1294-1BARUZ	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C		4.4 mm	14-TSSOP	0.173 in	0.4 V	0.8 V
Analog Devices Inc./Maxim Integrated ADM1294-1BARUZ-RL7	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C		4.4 mm	14-TSSOP	0.173 in	0.4 V	0.8 V
Analog Devices Inc./Maxim Integrated ADM1294-1AACPZ-RL7	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C	16-WQFN Exposed Pad CSP	4 mm	16-LFCSP-WQ	4 mm	0.8 V	0.4 V	3.6 mA	Single Phase	1.5 V
Analog Devices Inc./Maxim Integrated ADM1294-1AACPZ	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C	16-WQFN Exposed Pad CSP	4 mm	16-LFCSP-WQ	4 mm	0.8 V	0.4 V	3.6 mA	Single Phase	1.5 V

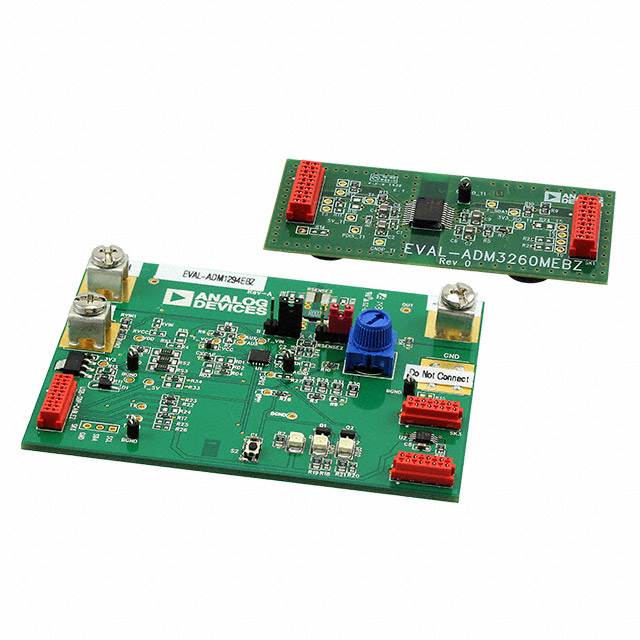

Analog Devices Inc./Maxim Integrated EVAL-ADM1294EBZ																Board(s) Cable(s)	Board Cable	I2C Interface(s)	ADM1294	Power Management	Energy Power Meter
Analog Devices Inc./Maxim Integrated ADM1294-1BACPZ	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C	16-WQFN Exposed Pad CSP	4 mm	16-LFCSP-WQ	4 mm	0.8 V	0.4 V	3.6 mA	Single Phase	1.5 V
Analog Devices Inc./Maxim Integrated ADM1294-1AARUZ-RL7	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C		4.4 mm	14-TSSOP	0.173 in	0.8 V	0.4 V	3.6 mA	Single Phase	1.5 V
Analog Devices Inc./Maxim Integrated ADM1294-1AARUZ	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C		4.4 mm	14-TSSOP	0.173 in	0.8 V	0.4 V	3.6 mA	Single Phase	1.5 V
Analog Devices Inc./Maxim Integrated ADM1294-1BACPZ-RL7	2.95 V	13 V	Surface Mount	1.1 V	-40 °C	105 °C	16-WQFN Exposed Pad CSP	4 mm	16-LFCSP-WQ	4 mm	0.8 V	0.4 V	3.6 mA	Single Phase	1.5 V
