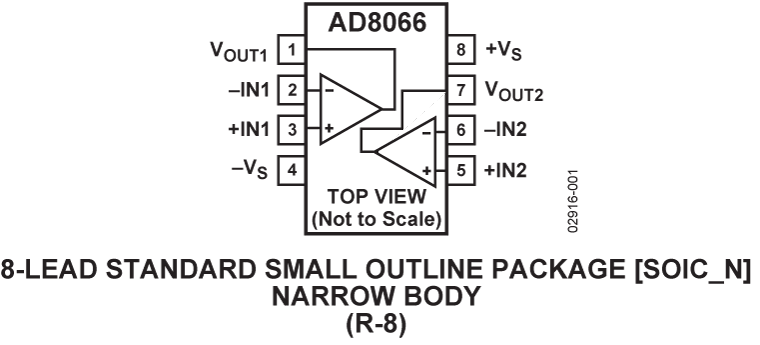

AD8066 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

HIGH PERFORMANCE, 145 MHZFASTFET™OP AMP

Part	Current - Output / Channel	Voltage - Input Offset	Amplifier Type	Number of Circuits	Mounting Type	Current - Input Bias	Package Length	Package Name	Package Width	Slew Rate	Operating Temperature (Min)	Operating Temperature (Max)	Current - Supply	Output Type	Voltage - Supply Span (Max)	Voltage - Supply Span (Min)	-3db Bandwidth	Board Type	Supplied Contents	Contents	Channels per IC (Dual)	Channels per IC (Type)	Channels per IC (Count)	Utilized IC / Part
Analog Devices Inc./Maxim Integrated AD8066ARZ-R7	30 mA	400 µV	Voltage Feedback	2	Surface Mount	3 pA	0.154 in	8-SOIC	3.9 mm	180 V/µs	-40 °C	85 °C	6.6 mA	Rail-to-Rail	24 V	5 V	155 MHz
Analog Devices Inc./Maxim Integrated AD8066AR	30 mA	400 µV	Voltage Feedback	2	Surface Mount	3 pA	0.154 in	8-SOIC	3.9 mm	180 V/µs	-40 °C	85 °C	6.6 mA	Rail-to-Rail	24 V	5 V	155 MHz
Analog Devices Inc./Maxim Integrated AD8066ARM-EBZ			Voltage Feedback															Bare (Unpopulated)	Board(s)	Unpopulated (Bare) Board	2	Dual	2	8-MSOP Package
Analog Devices Inc./Maxim Integrated AD8066ARM	30 mA	400 µV	Voltage Feedback	2	Surface Mount	3 pA	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	180 V/µs	-40 °C	85 °C	6.6 mA	Rail-to-Rail	24 V	5 V	120 MHz
Analog Devices Inc./Maxim Integrated AD8066ARZ-RL	30 mA	400 µV	Voltage Feedback	2	Surface Mount	3 pA	0.154 in	8-SOIC	3.9 mm	180 V/µs	-40 °C	85 °C	6.6 mA	Rail-to-Rail	24 V	5 V	155 MHz
Analog Devices Inc./Maxim Integrated AD8066ARMZ	30 mA	400 µV	Voltage Feedback	2	Surface Mount	3 pA	0.118 in	8-MSOP 8-TSSOP 8-MSOP	3 mm	180 V/µs	-40 °C	85 °C	6.6 mA	Rail-to-Rail	24 V	5 V	120 MHz
Analog Devices Inc./Maxim Integrated AD8066AR-EBZ			Voltage Feedback															Bare (Unpopulated)	Board(s)	Unpopulated (Bare) Board	2	Dual	2	8-SOIC Package
