Q-0802F0 Series

Catalog

COAX CBL BNC TO N-TYPE 6"

Part	2nd Contact Gender	1st Connector Mounting Feature	Color	2nd Connector	1st Contact Gender	Length	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	Frequency - Max	Features	Cable Type	1st Connector	Style	Length (ft)

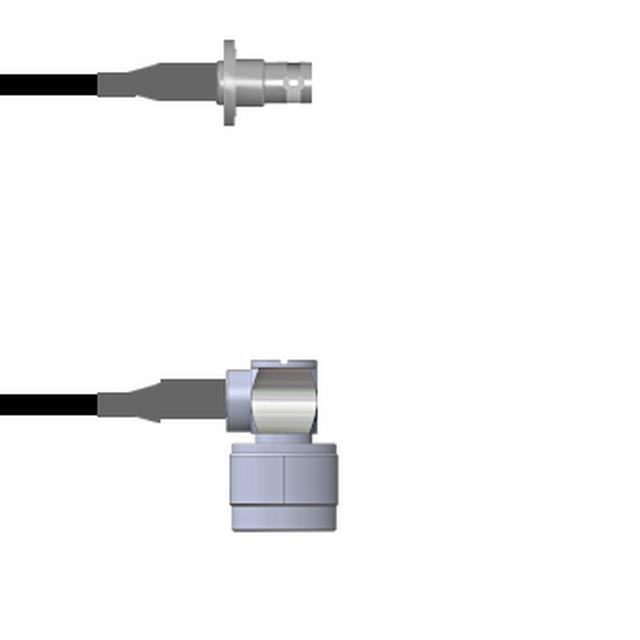

McGill Microwave Systems Q-0802F0008006i	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	0.5 ft	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type
McGill Microwave Systems Q-0802F0008002M	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female		50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type	6.6 ft
McGill Microwave Systems Q-0802F0008.25M	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	9.843 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type
McGill Microwave Systems Q-0802F0008048i	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	48 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type
McGill Microwave Systems Q-0802F00081.5M	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	59.1 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type	4.9 ft
McGill Microwave Systems Q-0802F0008060i	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	1524 mm	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type	5 ft
McGill Microwave Systems Q-0802F0008084i	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	84 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type	7 ft
McGill Microwave Systems Q-0802F0008024i	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	24 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type
McGill Microwave Systems Q-0802F00082.5M	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	98.4 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type	8.2 ft
McGill Microwave Systems Q-0802F0008072i	Male	Bulkhead Front Side Nut	Black	N-Type Plug Right Angle	Female	72 in	50 Ohms	Panel Mount	Free Hanging (In-Line)	4 GHz	Shielded	58 RG	BNC Jack	BNC N-Type
