9311-00 Series

Catalog

SMP MALE PCB SURFACE MOUNT CONNE

Part	Body Material	Center Contact Plating	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Finish	Connector Type	Center Contact Material	Contact Termination	Housing Color	Features	Number of Ports	Impedance	Mounting Type	Connector Style	Frequency - Max	Fastening Type	Shield Termination

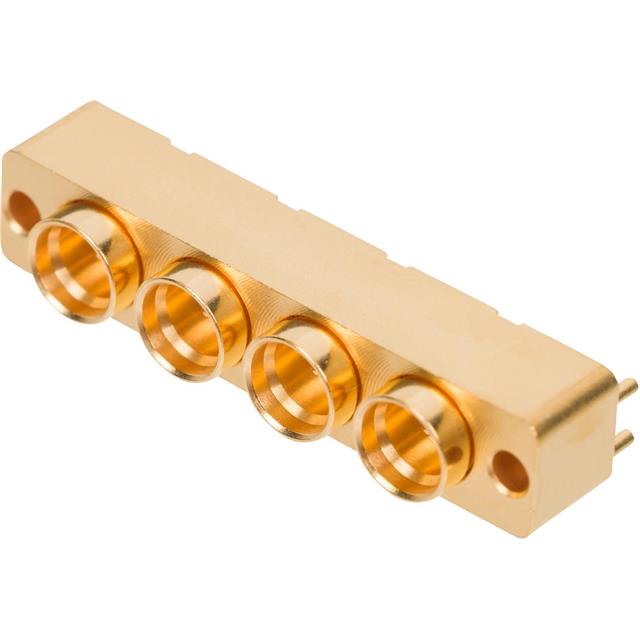

McGill Microwave Systems 9311-00036	Brass	Gold	1000 cycles	-65 °C	165 °C	Gold	Male Pin Plug	Beryllium Copper	Solder	Gold	Smooth Bore	4	50 Ohm	Surface Mount	SMP	40 Gbps	Snap-On	Solder

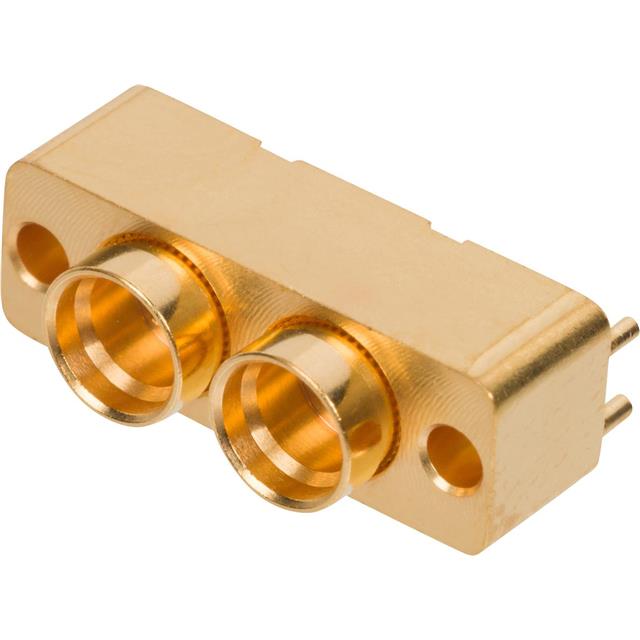

McGill Microwave Systems 9311-00035	Brass	Gold	1000 cycles	-65 °C	165 °C	Gold	Male Pin Plug	Beryllium Copper	Solder	Gold	Smooth Bore	2	50 Ohm	Surface Mount	SMP	40 Gbps	Snap-On	Solder
McGill Microwave Systems 9311-00038	Brass	Gold	500 cycles	-65 °C	165 °C	Gold	Male Pin Plug	Beryllium Copper	Solder	Gold	Smooth Bore	4	50 Ohm	Surface Mount	SMPM	40 Gbps	Snap-On	Solder
McGill Microwave Systems 9311-00037	Brass	Gold	500 cycles	-65 °C	165 °C	Gold	Male Pin Plug	Beryllium Copper	Solder	Gold	Smooth Bore	2	50 Ohm	Surface Mount	SMPM	40 Gbps	Snap-On	Solder
