KD48 Series

Catalog

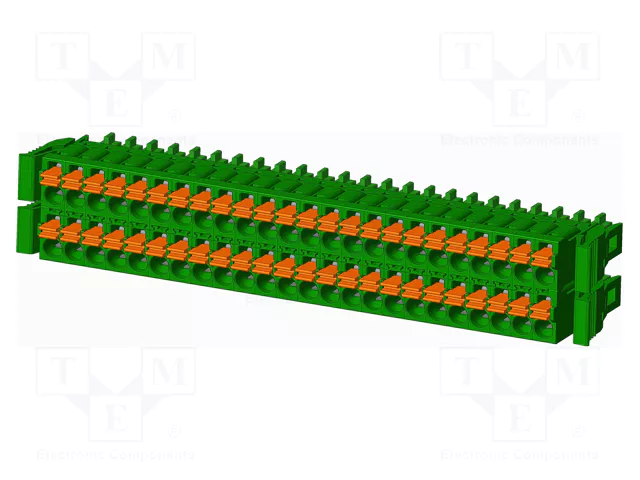

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 160V

Part	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Current - UL	Mounting Type	Positions Per Level	Contact Mating Finish	Number of Levels	Color	Plug Wire Entry Angle	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Voltage - UL	Pitch	Type	Material Flammability Rating	Housing Material	Insulation Height	Wire Strip Length (Min)	Wire Strip Length (Max)	Contact Material	Features
McGill Microwave Systems KD481051A000G	-40 °C	115 °C	Push-In Spring Screwless - Leg Spring	5.5 A	Free Hanging (In-Line)	24	Tin	2	Green	180 °	24 AWG	16 AWG	48	160 V	0.138 in	Female Sockets Plug	UL94 V-0	Thermoplastic	0.634 in	9 mm	10 mm	Phosphor Bronze
McGill Microwave Systems KD481052A000G	-40 °C	115 °C	Push-In Spring Screwless - Leg Spring	5.5 A	Free Hanging (In-Line)	24	Tin	2	Green	180 °	24 AWG	16 AWG	48	160 V	0.138 in	Female Sockets Plug	UL94 V-0	Thermoplastic	0.634 in	9 mm	10 mm	Phosphor Bronze	Latch Lock
McGill Microwave Systems KD481050A000G	-40 °C	115 °C	Push-In Spring Screwless - Leg Spring	5.5 A	Free Hanging (In-Line)	24	Tin	2	Green	180 °	24 AWG	16 AWG	48	160 V	0.138 in	Female Sockets Plug	UL94 V-0	Thermoplastic	0.634 in	9 mm	10 mm	Phosphor Bronze
