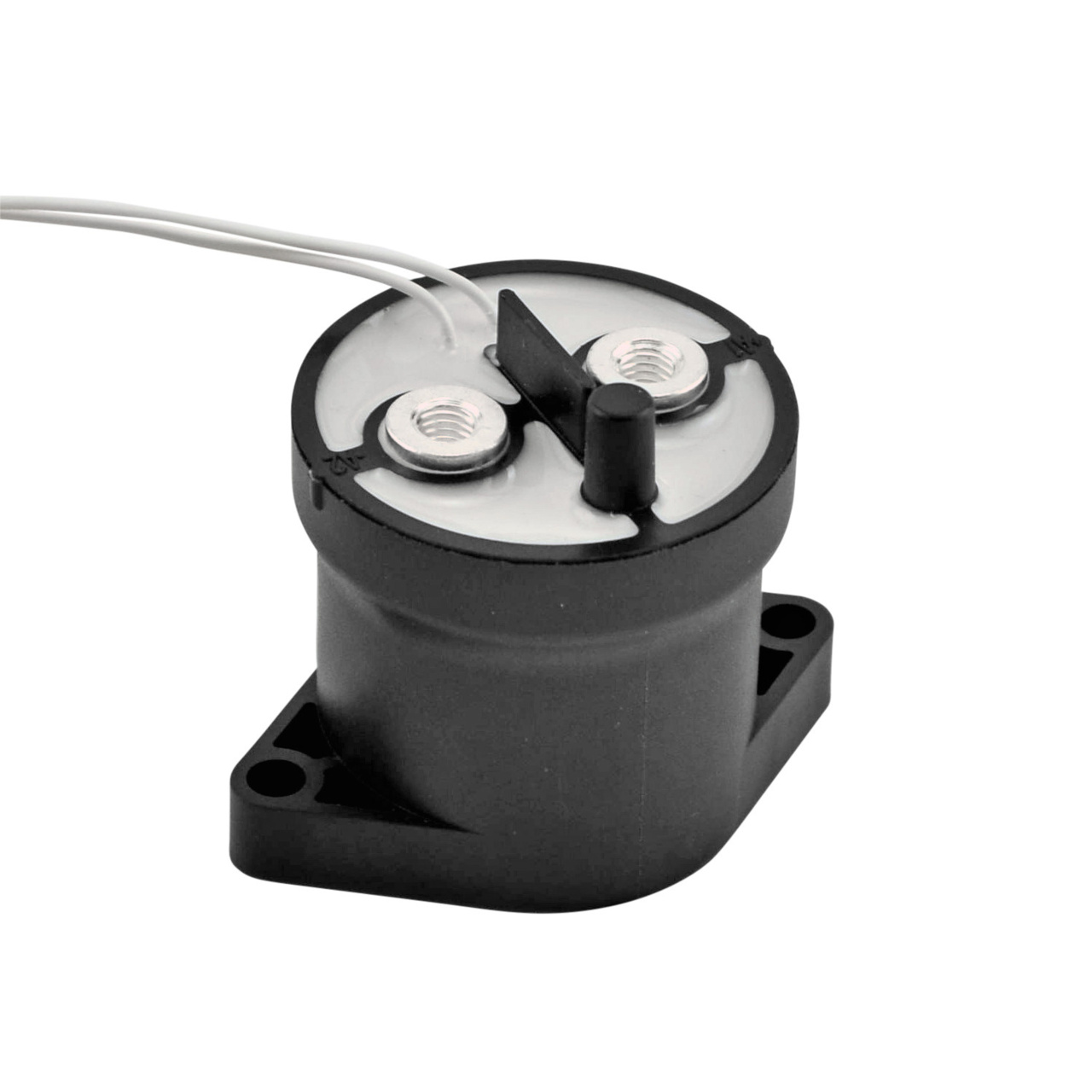

DCNSEV30-B Series

DCN 30A 900V 12V Coil SPST IP67

Catalog

DCN 30A 900V 12V Coil SPST IP67

Part	Coil Current	Release Time	Coil Power	Coil Resistance	Operate Time	Termination Style	Coil Voltage	Contact Rating (Current)	Must Operate Voltage	Mounting Type	Must Release Voltage	Switching Voltage (Nominal)	Contact Form	Operating Temperature (Min)	Operating Temperature (Max)
LITTELFUSE DCNSEV30-B	480 mA	10 ms	6 W	25 Ohms	25 ms	Stud Wire Leads	12 VAC	30 A	8 VDC	Chassis Mount	1.2 V	900 VDC	1 DM Form SPST-NO X	-40 °C	85 °C

Catalog

DCN 30A 900V 12V Coil SPST IP67

Description

Featuring a magnetic arc blowout design and IP67 sealed, gas-filled chamber, the DCNSEV30 Series 900V 30A High-Voltage DC Contactor Relay was developed for electric vehicle (EV) and eMobility applications, such as battery power supply, charging stations, motor control, circuit insulation, and circuit protection. The 30A relay can also be used as a safety device in industrial machinery. Utilizing polarized contacts, this high-voltage DC contactor performs optimally amidst polarized electrical loads. This configuration of the DCNSEV30 Series 30A contactor (DCNSEV30-B) has a 12V dc coil rating.
