M85049/88 Series

Catalog

CONN BACKSH BANDING SZ13 C BLK

Part	Features	Shielding	Shell Size - Insert	Plating	Diameter - Outside	Cable Opening	Material	Color	Cable Exit Angle	Type	For Use With/Related Products
McGill Microwave Systems M85049/88-13Z02	Self Locking	Unshielded	13 C	Zinc Cobalt	1.16 in	0.32 in	Aluminum Alloy	Black	180 °	Backshell Banding

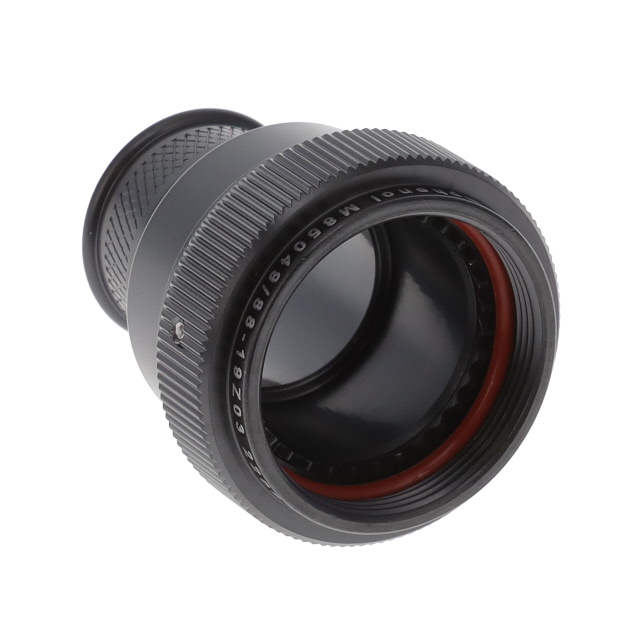

McGill Microwave Systems M85049/88-19Z03	Self Locking	Unshielded	19 F	Zinc Cobalt	1.52 in	0.76 in	Aluminum Alloy	Black	180 °	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/88-15W02	Self Locking	Unshielded	15 D	Cadmium	1.281 in	0.45 in	Aluminum Alloy	Olive Drab	180 °	Backshell Banding

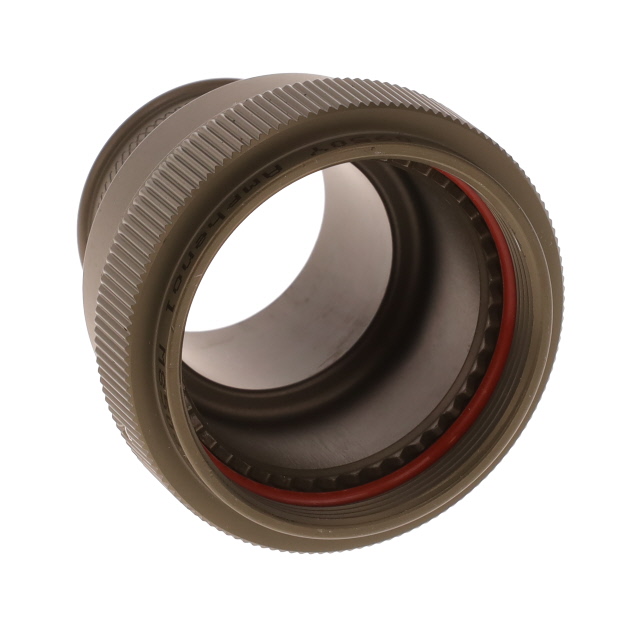

McGill Microwave Systems M85049/88-25W03	Self Locking	Unshielded	25 J	Cadmium	1.891 in	1.01 in	Aluminum Alloy	Olive Drab	180 °	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/88-17Z02	Self Locking	Unshielded	17 E	Zinc Cobalt	1.41 in	0.51 in	Aluminum Alloy	Black	180 °	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/88-19Z02	Self Locking	Unshielded	19 F	Zinc Cobalt	1.52 in	0.64 in	Aluminum Alloy	Black	180 °	Backshell Banding	IV MIL-DTL-38999 Series III

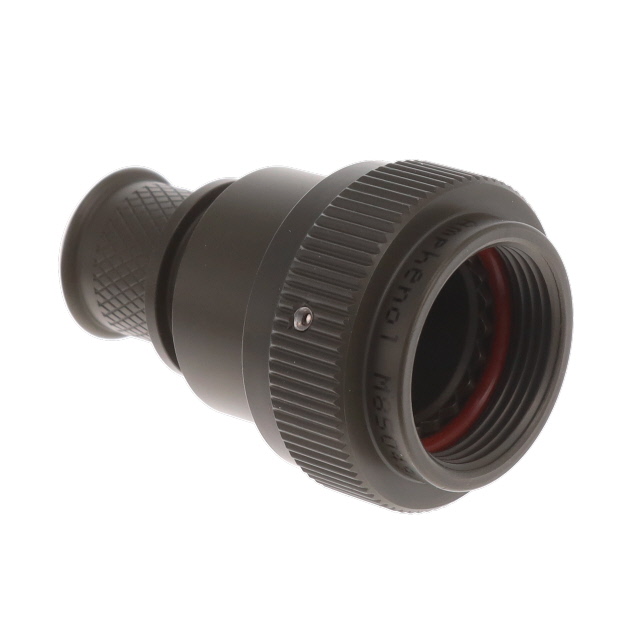

McGill Microwave Systems M85049/88-13W03	Self Locking	Unshielded	13 C	Cadmium	1.156 in	0.45 in	Aluminum Alloy	Olive Drab	180 °	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/88-9W03	Self Locking	Unshielded	9 A	Cadmium	0.859 in	0.26 in	Aluminum Alloy	Olive Drab	180 °	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/88-15N03	Self Locking	Unshielded	15 D	Electroless Nickel	1.281 in	0.57 in	Aluminum Alloy	Silver	180 °	Backshell Banding	IV MIL-DTL-38999 Series III
McGill Microwave Systems M85049/88-25Z02	Self Locking	Unshielded	25 J	Zinc Cobalt	1.89 in	0.76 in	Aluminum Alloy	Black	180 °	Backshell Banding
