ADF7021 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

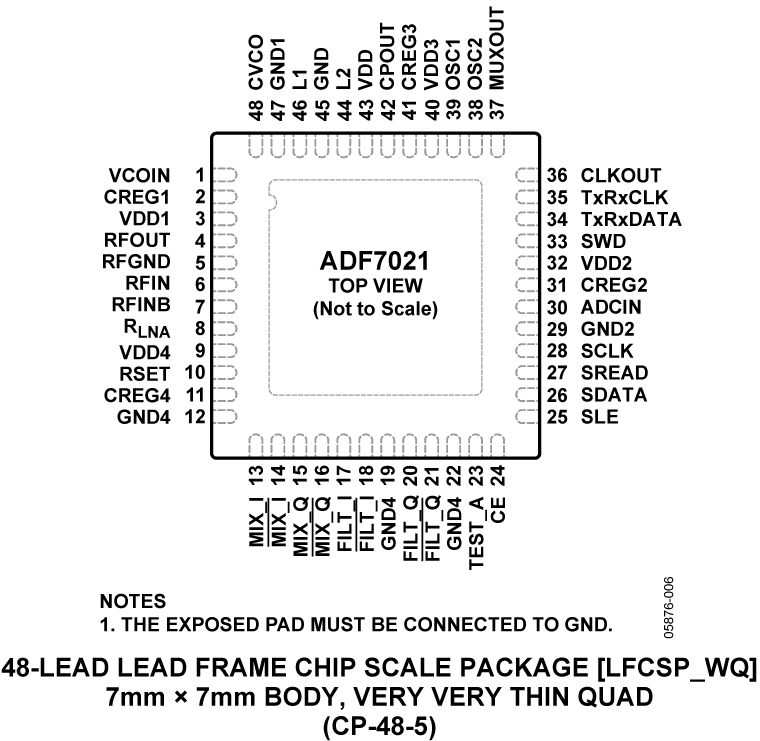

HIGH PERFORMANCE NARROWBAND ISM TRANSCEIVER IC

Part	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Sensitivity	Serial Interfaces	Current - Transmitting (Max)	Current - Transmitting (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Frequency Range 1 (Min)	Frequency Range 1 (Max)	Frequency Range 2 (Min)	Frequency Range 2 (Max)	Current - Receiving (Min)	Current - Receiving (Max)	Type	Power - Output	Package Width	Package Name	Package Length	Data Rate (Max)	Modulation	Mounting Type	RF Family/Standard	Supplied Contents	For Use With/Related Products	Contents	Frequency (Max)	Frequency (Min)	Utilized IC / Part	Frequency
Analog Devices Inc./Maxim Integrated ADF7021BCPZ-RL	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	-130 dBm	SPI UART	32.3 mA	13.5 mA	3.6 V	2.3 V	80 MHz	650 MHz	862 MHz	950 MHz	17.5 mA	26.4 mA	TxRx Only	13 dBm	7 mm	48-LFCSP	7 mm	32.8 kbps	2FSK 2GFSK 3FSK 4FSK FHSS GMSK MSK	Surface Mount	General ISM < 1GHz
Analog Devices Inc./Maxim Integrated EVAL-ADF7021DBZ3																FSK Transceiver									Board(s)	ADF7021D	Board	470 MHz	431 MHz	ADF7021D
Analog Devices Inc./Maxim Integrated EVAL-ADF7021-VDB1Z																FSK Transceiver									Board(s)	ADF7021	Board	470 MHz	450 MHz	ADF7021
Analog Devices Inc./Maxim Integrated EVAL-ADF7021DBJZ																FSK Transceiver									Board(s)	ADF7021D	Board	435 MHz	426 MHz	ADF7021D
Analog Devices Inc./Maxim Integrated ADF7021BCPZ	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	-130 dBm	SPI UART	32.3 mA	13.5 mA	3.6 V	2.3 V	80 MHz	650 MHz	862 MHz	950 MHz	17.5 mA	26.4 mA	TxRx Only	13 dBm	7 mm	48-LFCSP	7 mm	32.8 kbps	2FSK 2GFSK 3FSK 4FSK FHSS GMSK MSK	Surface Mount	General ISM < 1GHz
Analog Devices Inc./Maxim Integrated EVAL-ADF7021-VDB3Z																FSK Transceiver									Board(s)	ADF7021	Board	162 MHz	156 MHz	ADF7021
Analog Devices Inc./Maxim Integrated EVAL-ADF7021DBZ6																FSK Transceiver									Accessories Board(s)	ADF7021D	Accessories Board	614 MHz	608 MHz	ADF7021D
Analog Devices Inc./Maxim Integrated ADF7021BCPZ-RL7	48-WFQFN Exposed Pad CSP	-40 °C	85 °C	-130 dBm	SPI UART	32.3 mA	13.5 mA	3.6 V	2.3 V	80 MHz	650 MHz	862 MHz	950 MHz	17.5 mA	26.4 mA	TxRx Only	13 dBm	7 mm	48-LFCSP	7 mm	32.8 kbps	2FSK 2GFSK 3FSK 4FSK FHSS GMSK MSK	Surface Mount	General ISM < 1GHz
Analog Devices Inc./Maxim Integrated EVAL-ADF7021DBZ2																FSK Transceiver									Board(s)	ADF7021D	Board	870 MHz	862 MHz	ADF7021D
Analog Devices Inc./Maxim Integrated EVAL-ADF7021-NDB9Z																FSK Transceiver									Board(s)	ADF7021-N	Board			ADF7021-N	169 MHz
