1825910 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Actuator Material	Switch Travel	Mechanical Life (Cycles)	Actuator Height off PCB (Vertical)	Circuit	Illumination	Operating Force	Switch Function	Actuator Orientation	Termination Style	Actuator Type	Contact Rating (Current)	Mounting Type	Outline Width	Outline Length	Operating Temperature (Max)	Operating Temperature (Min)
TE Connectivity AMP Connectors 3-1825910-7	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	8.5 mm	SPST-NO	Non-Illuminated	520 gf	Off-Mom	Top Actuated	PC Pin	Standard	0.05 A	Through Hole	6 mm	6 mm	85 °C	-35 °C

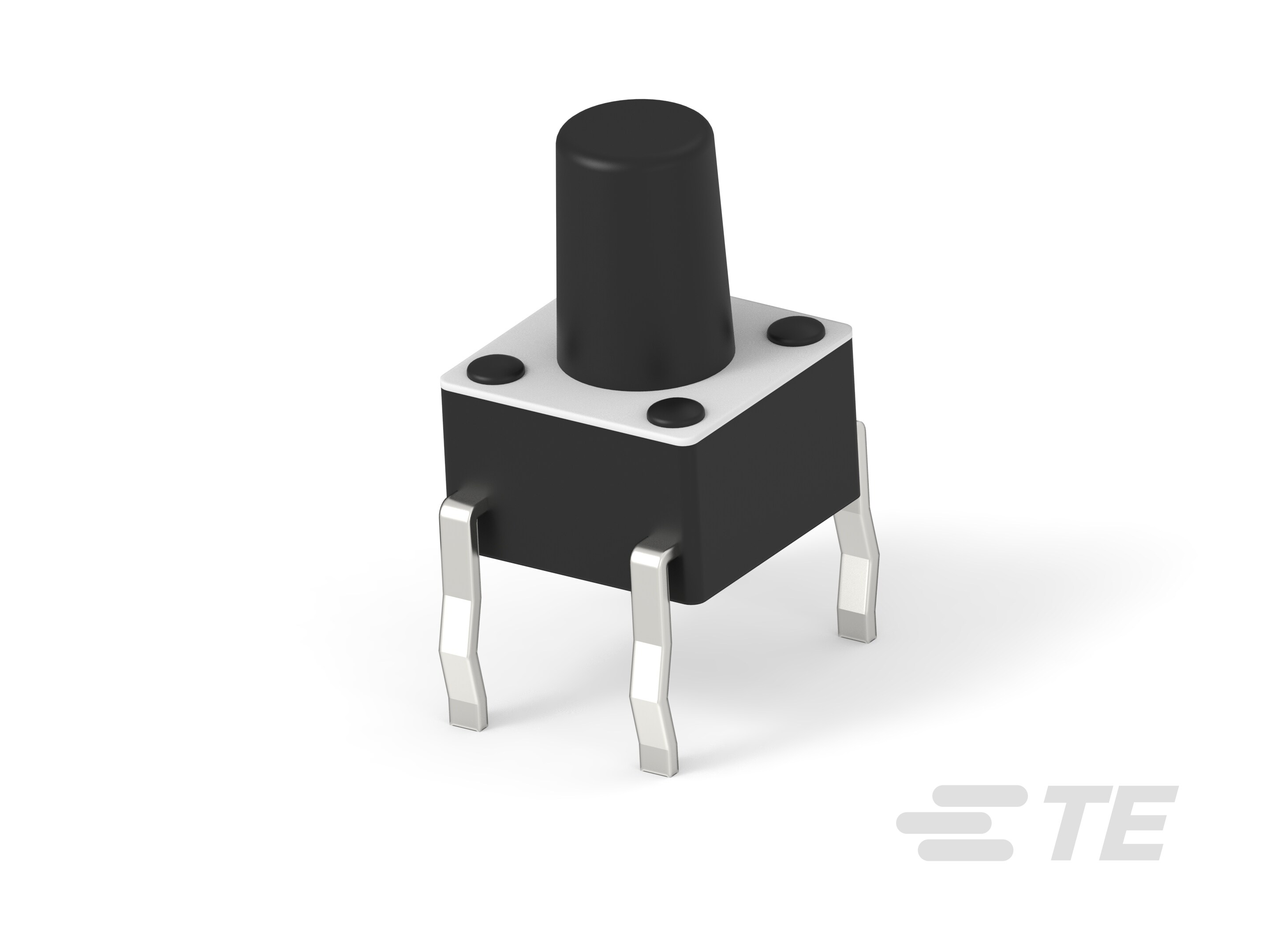

TE Connectivity AMP Connectors 3-1825910-5	Nylon 6/6 Polyamide (PA66)	0.25 mm	100000 Cycles	8.5 mm	SPST-NO	Non-Illuminated	160 gf	Off-Mom	Top Actuated	PC Pin	Standard	0.05 A	Through Hole	6 mm	6 mm	85 °C	-35 °C
TE Connectivity AMP Connectors 1825910-5	Polybutylene Terephthalate (PBT)	0.25 mm	100000 Cycles	5 mm	SPST-NO	Non-Illuminated	0.1 kgf	Off-Mom	Top Actuated	PC Pin	Standard	0.05 A	Through Hole	6 mm	6 mm	85 °C	-35 °C
