ALM06FD17 Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K
CONN PLUG MALE 55POS GOLD CRIMP
| Part | Fastening Type | Shell Size - Insert (Maximum) | Shell Size - Insert (Minimum) | Primary Material | Ingress Protection Description | Ingress Protection IP Rating | Shielding | Orientation | Current Rating | Shell Material | Mounting Type | Shell Finish | Contact Finish - Mating | Operating Temperature (Max) | Operating Temperature (Min) | Features | Connector Type | Material Flammability Rating | Number of Positions | Termination | Color | Applications | Insert Material | Shell Size - Insert Length | Shell Size - Insert Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Threaded | 35 | 17 | Composite | Dust Tight Waterproof | IP67 | Shielded | N (Normal) | 13 A | Composite | Free Hanging (In-Line) | Gray Zinc Nickel | Gold | 125 °C | -65 °C | Coupling Nut | Male Pins Plug | UL94 V-0 | 55 | Crimp | Gray | Aviation | Silicon Rubber | ||

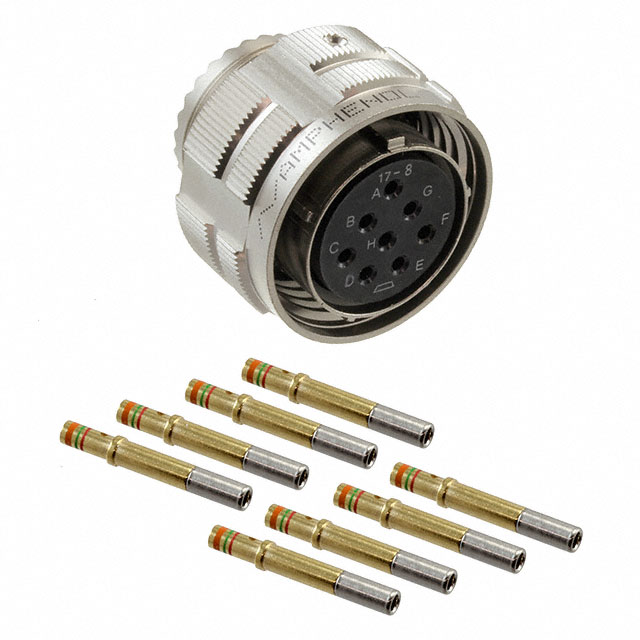

 Amphenol Aerospace Operations | Threaded | Composite | Dust Tight Waterproof | IP67 | Shielded | N (Normal) | 13 A | Composite | Free Hanging (In-Line) | Electroless Nickel | Gold | 125 °C | -65 °C | Coupling Nut | Female Sockets Plug | UL94 V-0 | 8 | Crimp | Aviation | Silicon Rubber | 17 mm | 8 mm |
