ATP04-6P Series

Catalog

CONN RCPT HSG 6POS

Part	Contact Termination	Features	Mounting Type	Insulation Material	Color	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Contact Type	Fastening Type	Number of Rows	Connector Type	Note	Contact Finish - Mating	Contact Material	Style	Ingress Protection Description	Ingress Protection IP Rating	Insulation Height	Number of Positions Loaded	Insulation Color	Contact Shape	Contact Finish - Post	Termination	Contact Length - Post	Pitch - Mating	Shrouding	Row Spacing - Mating	Current Rating	For Use With/Related Products	Accessory Type

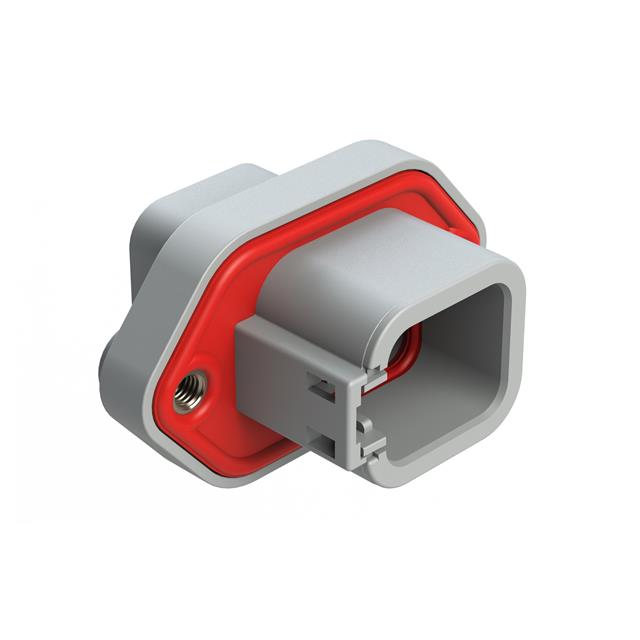

McGill Microwave Systems ATP04-6P-PM06	Crimp	IP68 Mounting Flange Reduced Wire Seals	Panel Mount	Thermoplastic	Gray	125 °C	-55 °C	6	Male Pin	Threaded	2	Receptacle

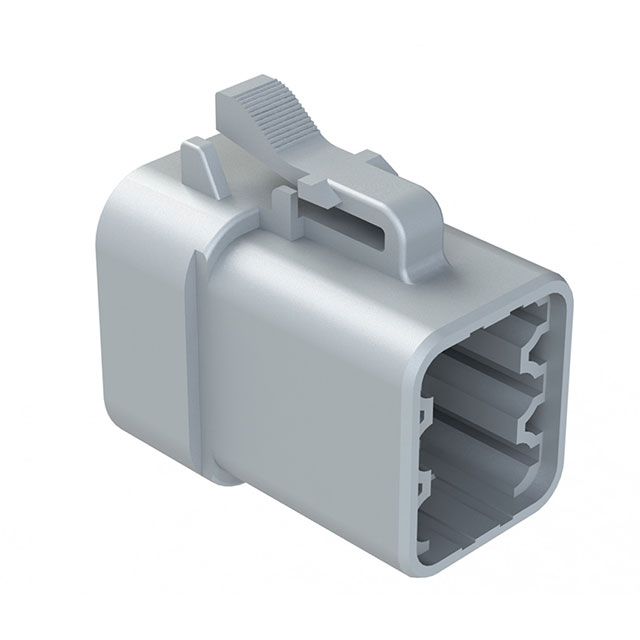

McGill Microwave Systems ATP04-6P-RD01	Crimp	Cap (Cover) Sealed	Free Hanging (In-Line)	Thermoplastic	Gray	125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle	Contacts Not Included
McGill Microwave Systems ATP04-6P-BM01		Board Guide Board Lock Sealed	Through Hole	Thermoplastic		125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle		Gold	Copper Alloy	Board Cable/Wire	Dust Tight Water Resistant Waterproof	IP68 IP69K	1.126 in	All	Black	Circular	Gold	Solder	0.146 in	0.264 in	Shrouded - 4 Wall	0.4 in	25 A
McGill Microwave Systems ATP04-6P-RD01BK	Crimp	Cap (Cover) Sealed	Free Hanging (In-Line)	Thermoplastic	Black	125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle	Contacts Not Included

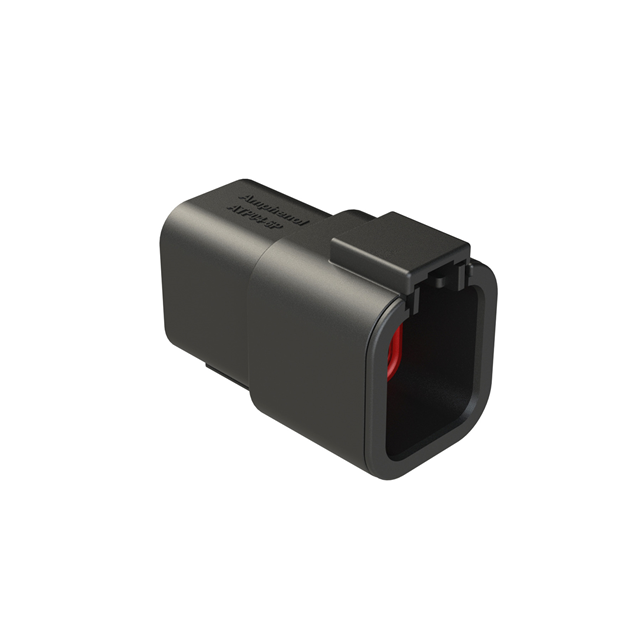

McGill Microwave Systems ATP04-6P-BLK	Crimp	Sealed	Free Hanging (In-Line)	Thermoplastic	Black	125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle	Contacts Not Included

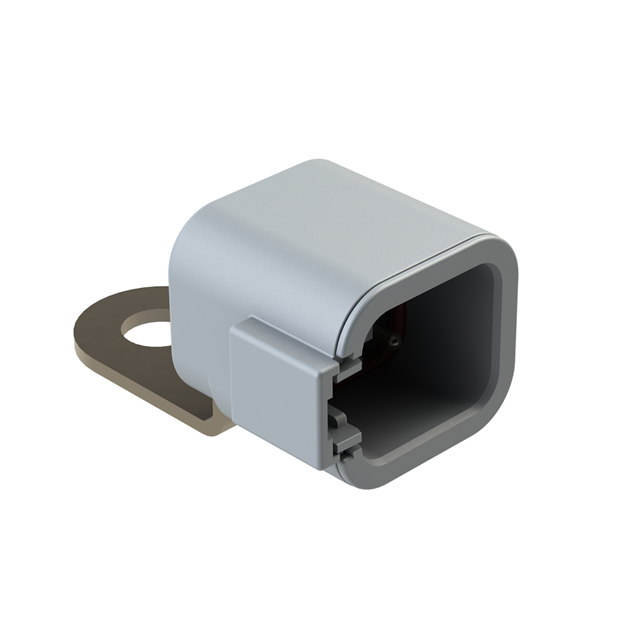

McGill Microwave Systems ATP04-6PA-BUS		Sealed						6																						ATP Series™	Terminator
McGill Microwave Systems ATP04-6P-BM14		Board Guide Potting Wall Sealed	Through Hole	Thermoplastic		125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle		Tin	Copper Alloy	Board Cable/Wire	Dust Tight Water Resistant Waterproof	IP68 IP69K	1.126 in	All	Black	Circular	Tin	Solder	0.146 in	0.264 in	Shrouded - 4 Wall	0.4 in	25 A

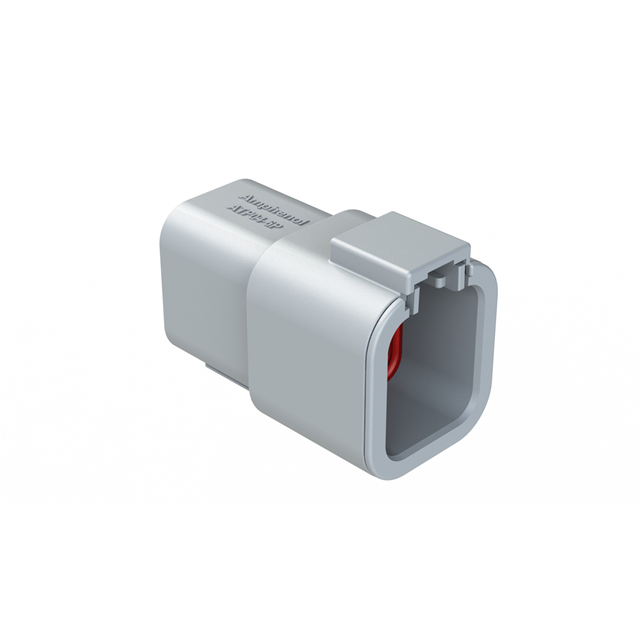

McGill Microwave Systems ATP04-6P	Crimp	Sealed	Free Hanging (In-Line)	Thermoplastic	Gray	125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle	Contacts Not Included

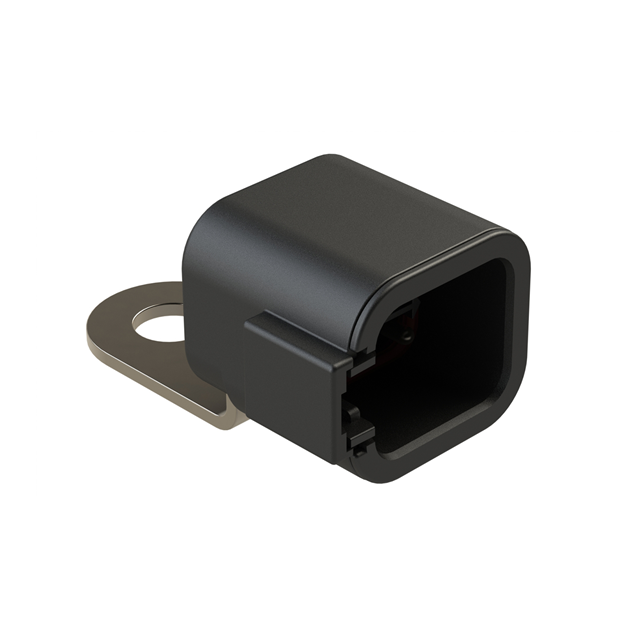

McGill Microwave Systems ATP04-6PB-BUS		Sealed						6																						ATP Series™	Terminator

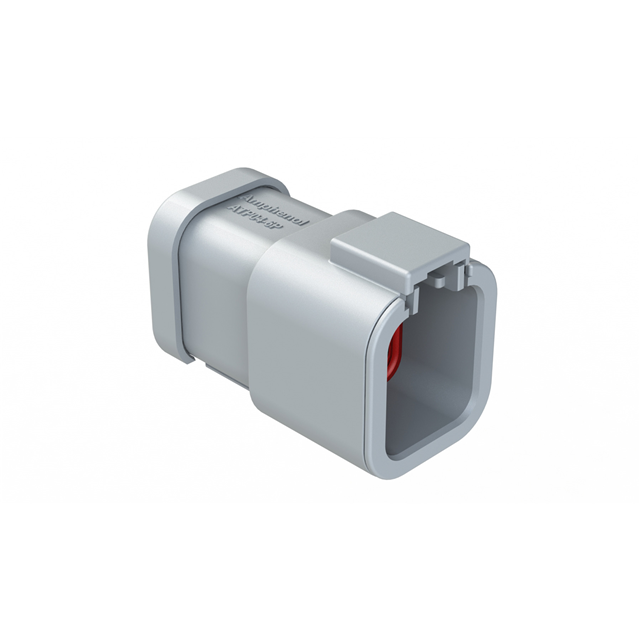

McGill Microwave Systems ATP04-6P-MM01	Crimp	Cap (Cover) Sealed	Free Hanging (In-Line)	Thermoplastic	Gray	125 °C	-55 °C	6	Male Pin	Latch Holder	3	Receptacle	Contacts Not Included
