Single Pole 1-Form-A Voltage-Control
Single Pole 1-Form-A Voltage-Control
| Part | Approval Agency | Output Type | Circuit | Package Name | Package Features | Package Length | Package Width | Operating Temperature (Min) | Operating Temperature (Max) | Termination Style | Load Current | Voltage - Load (Max) | Voltage - Load (Min) | On-State Resistance (Max) | Voltage - Input (DC) Minimum | Voltage - Input (DC) Maximum | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

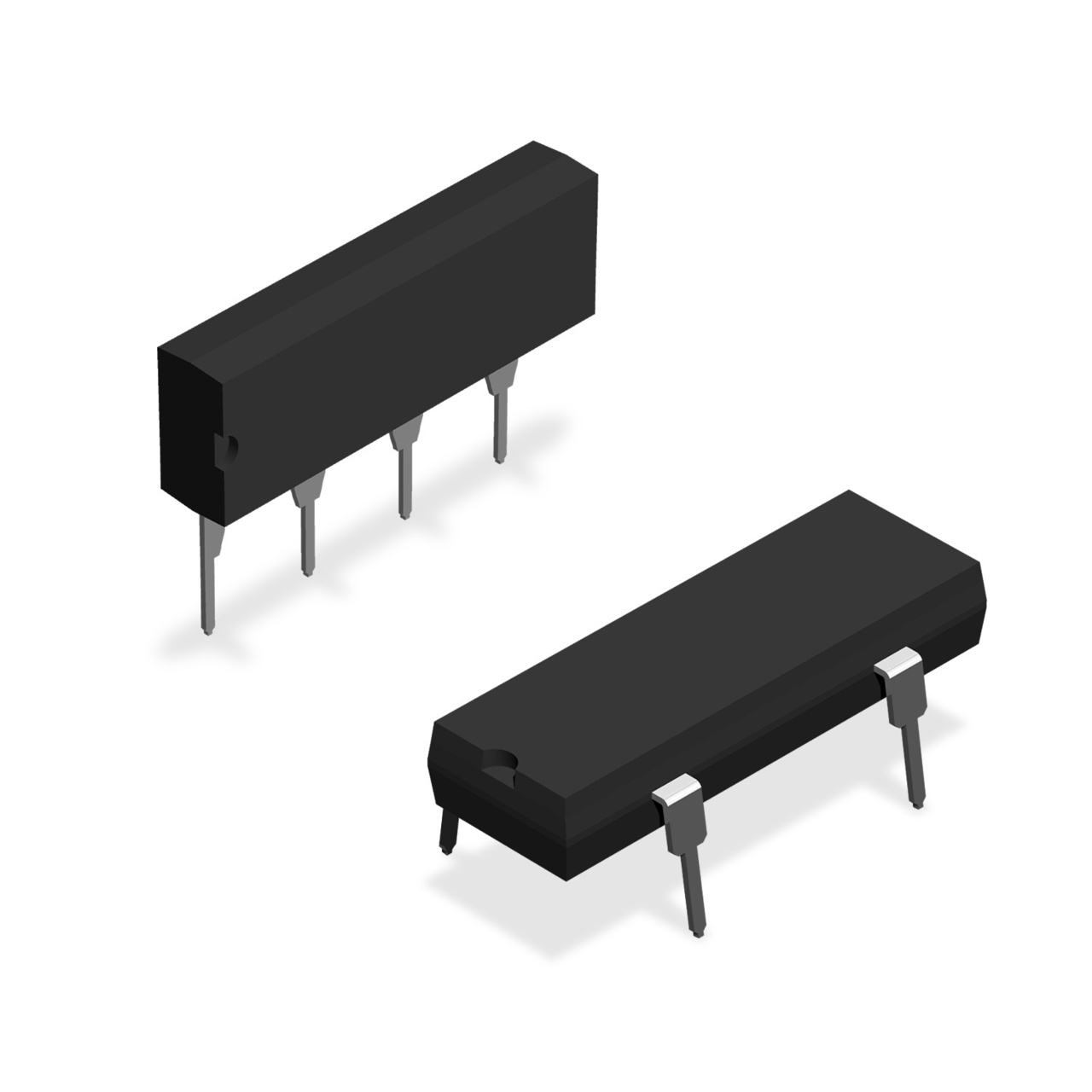

 LITTELFUSE | CSA TUV UL | AC DC | SPST-NO (1 Form A) | 14-DIP 4-DIP | 4 Leads | 0.3 in | 7.62 mm | -40 °C | 85 °C | PC Pin | 500 mA | 400 V | 0 V | 6 Ohms | 5 VDC | 12 VDC | Through Hole |
