297 Series
Manufacturer: LITTELFUSE
Beta
⌘K

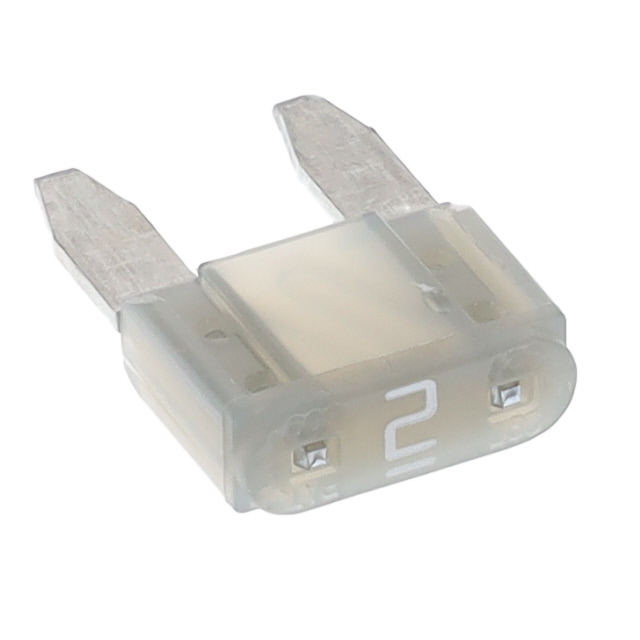

FUSE - MINI 32V TIN PLATED 2A 3000 PC/ BULK
| Part | DC Cold Resistance | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Size / Dimension Height | Size / Dimension Width | Size / Dimension Length | Response Time | Package / Case | Approval Agency | Breaking Capacity | Color | Fuse Type | Current Rating | Melting I²t | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.0556 Ohms | 125 °C | -40 °C | Requires Holder | 0.346 in | 0.15 in | 0.429 in | Fast Blow | Blade Miniature | UR | 1 kA | Gray | Automotive | 2 A | 2.8 | 32 V |
 LITTELFUSE | 125 °C | -40 °C | Requires Holder | 0.346 in | 0.15 in | 0.429 in | Fast Blow | Blade Miniature | UR | 1 kA | Tan | Automotive | 5 A | 25 | 32 V |
