WKP Series

Catalog

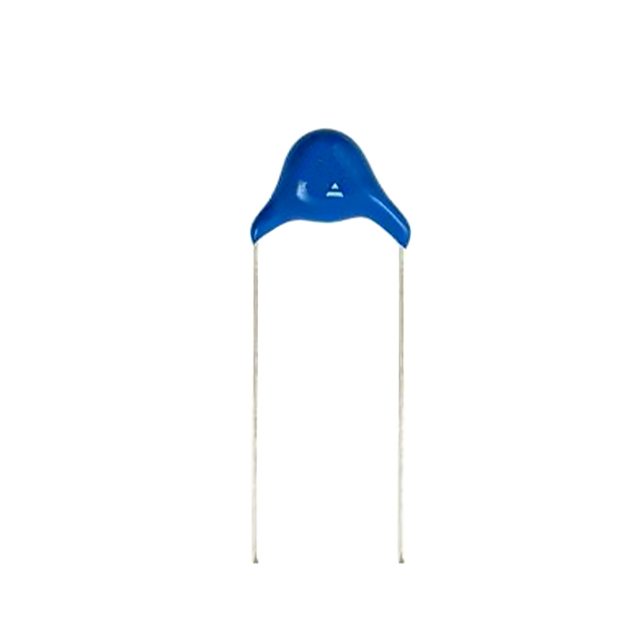

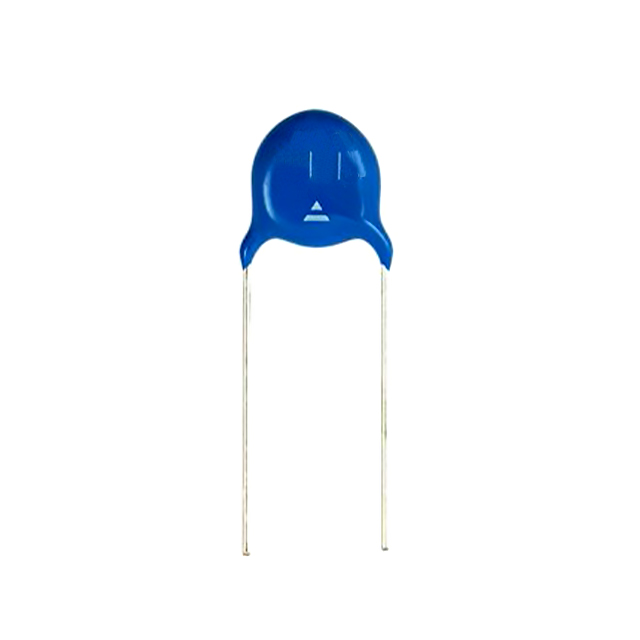

CAP CERAMIC SINGLE SUPPRESSION X1/Y1 0.0033UF 760VAC/500VAC Y5U 20% (15 X 6MM) RADIAL DISC 12.5MM 125°C BULK

Part	Capacitance	Package / Case	Height - Seated (Max)	Lead Style	Applications	Lead Spacing	Temperature Coefficient	Size / Dimension Diameter	Mounting Type	Ratings	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Tolerance
Vishay Dale WKP332MCPEF0KR	3300 pF	Disc Radial	0.709 in	Straight	Safety	0.492 in	Y5U (E)	0.591 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP102MCPERUKR	1000 pF	Disc Radial	0.512 in	Straight	Safety	0.492 in	Y5U (E)	0.394 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP152MCPERYKR	1500 pF	Disc Radial	0.591 in	Straight	Safety	0.492 in	Y5U (E)	0.472 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP101KCPED0KR	100 pF	Disc Radial	0.433 in	Straight	Safety	0.492 in	Y5S	0.315 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	10 %
Vishay Dale WKP332MCPEF0KR	3300 pF	Disc Radial	0.709 in	Straight	Safety	0.492 in	Y5U (E)	0.591 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP681MCPERZKR	680 pF	Disc Radial	0.472 in	Straight	Safety	0.492 in	Y5U (E)	0.354 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP102MCPERYKR	1000 pF	Disc Radial	0.512 in	Straight	Safety	0.492 in	Y5U (E)	0.394 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP152MCPERYKR	1500 pF	Disc Radial	0.591 in	Straight	Safety	0.492 in	Y5U (E)	0.472 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP152MCPQG0KR	1500 pF	Disc Radial	0.591 in	Straight	Safety	0.492 in	Y5U (E)	0.472 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	20 %
Vishay Dale WKP472KCPERYKR	4700 pF	Disc Radial	0.827 in	Straight	Safety	0.492 in	Y5U (E)	0.709 in	Through Hole	X1 Y1	760 V	125 °C	-40 °C	10 %
