XHP35B Series

Catalog

LED XLAMP WARM WHT 3500K 1414

...

Part	Thermal Resistance of Package	Viewing Angle	CCT (K)	CCT Description	Color	CRI (Color Rendering Index)	Package / Case	Lumens/Watt	Flux (Maximum)	Flux (Typical)	Flux (Minimum)	Voltage - Forward (Vf) (Typ)	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Current - Max	Current - Test	Mounting Type	Package Name	Viewing Angle (Horizontal)	Viewing Angle (Vertical)
CreeLED, Inc. XHP35B-H0-0000-0D0ZA235H	0.7 °C/W	120 °	3500 K	2-Step MacAdam Ellipse	Warm White	95	1414 (3535 Metric)	88 lm/W	355 lm	343 lm	330 lm	11.2 V	0.044 in	0.136 in	0.136 in	1.5 A	350 mA	Surface Mount	1414

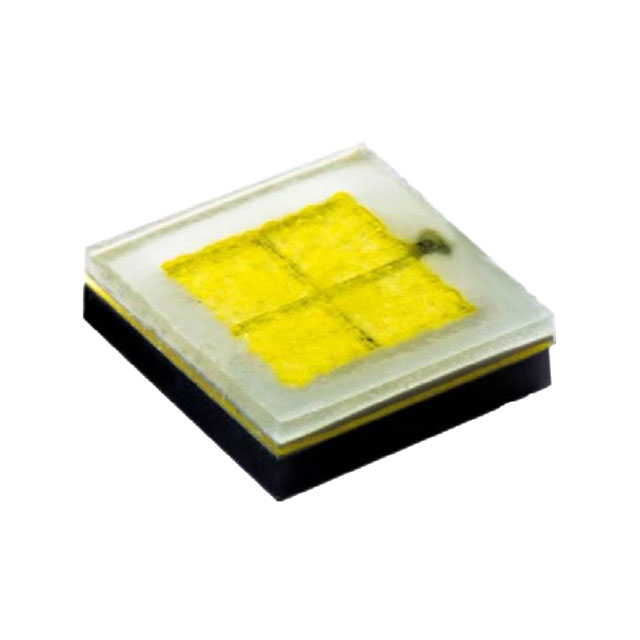

CreeLED, Inc. XHP35B-H0-0000-0D0UA40E2	1.8 °C/W	120 °	5700 K		Cool White	90	1414 (3535 Metric)	94 lm/W	380 lm	368 lm	355 lm	11.2 V	0.044 in	0.136 in	0.136 in	1.05 A 1.5 A	350 mA	Surface Mount	SMD
CreeLED, Inc. XHP35B-H0-0000-0D0HC227E	1.8 °C/W		2700 K	2-Step MacAdam Ellipse	Cool White	80	1414 (3535 Metric)	117 lm/W	475 lm	458 lm	440 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.05 A	350 mA	Surface Mount	1414	120 °	135 °
CreeLED, Inc. XHP35B-H0-0000-0D0HB457E	0.7 °C/W 1.8 °C/W	120 °	2700 K	2-Step MacAdam Ellipse	Cool White	80	1414 (3535 Metric)	108 lm/W	440 lm	425 lm	410 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.05 A 1.5 A	350 mA	Surface Mount	1414	120 °	135 °
CreeLED, Inc. XHP35B-00-0000-0D0UC235G	1.8 °C/W		3500 K	3-Step MacAdam Ellipse	Warm White	90	1414 (3535 Metric)	117 lm/W	475 lm	458 lm	440 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.05 A	350 mA	Surface Mount	1414	120 °	135 °
CreeLED, Inc. XHP35B-H0-0000-0D0UB245G		120 °	2700 K	2-Step MacAdam Ellipse	Cool White	90	1414 (3535 Metric)	101 lm/W	410 lm	395 lm	380 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.5 A	350 mA	Surface Mount	1414
CreeLED, Inc. XHP35B-00-0000-0D0BD430E		135 °	3000 K	5-Step MacAdam Ellipse	Warm White	70	1414 (3535 Metric)	145 lm/W	590 lm	570 lm	550 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.5 A	350 mA	Surface Mount	1414
CreeLED, Inc. XHP35B-00-0000-0D0UB227H	1.8 °C/W		2700 K	2-Step MacAdam Ellipse	Warm White	90	1414 (3535 Metric)	101 lm/W	410 lm	395 lm	380 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.05 A	350 mA	Surface Mount	1414	120 °	135 °
CreeLED, Inc. XHP35B-H0-0000-0D0UA450E	1.8 °C/W		2700 K	2-Step MacAdam Ellipse	Cool White	90	1414 (3535 Metric)	94 lm/W	380 lm	367.5 lm	355 lm	11.2 V	0.109 in	0.136 in	0.136 in	1.05 A	350 mA	Surface Mount	1414	120 °	135 °
CreeLED, Inc. XHP35B-H0-0000-0D0ZB440G	0.7 °C/W	120 °	4000 K	3-Step MacAdam Ellipse	Neutral White	95	1414 (3535 Metric)	108 lm/W	440 lm	425 lm	410 lm	11.2 V	0.044 in	0.136 in	0.136 in	1.5 A	350 mA	Surface Mount	1414
