FA1-NCSP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

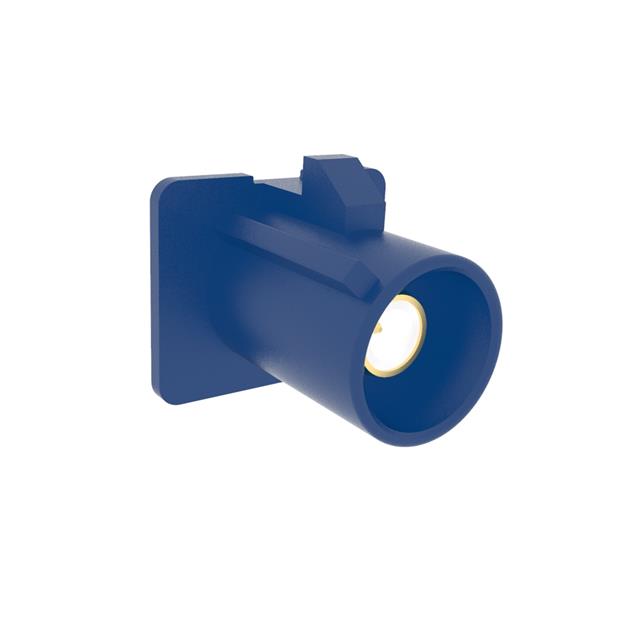

CONN FAKRA PLG R/A 50OHM EDGEMNT
| Part | Housing Color | Center Contact Material | Impedance | Frequency - Max | Number of Ports | Connector Style | Connector Type | Mounting Type | Shield Termination | Contact Termination | Fastening Type | Features | Body Finish | Mating Cycles | Insertion Loss | Dielectric Material | Body Material | Center Contact Plating | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Feature | Cable Group | Includes Total Count | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Blue Signal | Brass | 50 Ohm | 4 GHz | 1 | Fakra SMB | Male Pin Plug | Board Edge Cutout Right Angle Surface Mount Through Hole | Solder | Solder | Locking Ramp | Code C | Gold | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | 100 °C | -40 °C | ||||
McGill Microwave Systems | Blue Signal | Brass | 50 Ohm | 4 GHz | 1 | Fakra SMB | Male Pin Plug | Panel Mount | Crimp | Crimp | Locking Ramp | Code C | Nickel | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | 100 °C | -40 °C | Flange | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 3 pcs | Connector Contact Ferrule |
 McGill Microwave Systems | Blue Signal | Brass | 50 Ohm | 4 GHz | 1 | Fakra SMB | Male Pin Plug | Panel Mount | Crimp | Crimp | Locking Ramp | Code C | Nickel | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | 100 °C | -40 °C | Flange | 141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58 | 3 pcs | Connector Contact Ferrule |
McGill Microwave Systems | Blue Signal | Brass | 50 Ohm | 4 GHz | 1 | Fakra SMB | Male Pin Plug | Board Edge Cutout Surface Mount | Solder | Solder | Locking Ramp | Code C | Gold | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | 100 °C | -40 °C | ||||
 McGill Microwave Systems | Blue Signal | Brass | 50 Ohm | 4 GHz | 1 | Fakra SMB | Male Pin Plug | Panel Mount | Crimp | Crimp | Locking Ramp | Code C | Nickel | 100 cycles | 0.3 dB | Polytetrafluoroethylene (PTFE) | Brass | Gold | 100 °C | -40 °C | Flange | 188 188A 316 LMR-100 M17/119-RG174 RG-174 | 3 pcs | Connector Contact Ferrule |
 McGill Microwave Systems | Blue Signal | Brass | 50 Ohm | 4 GHz | 1 | Fakra SMB | Male Pin Plug | Through Hole | Solder | Solder | Locking Ramp | Code C | Gold | 100 cycles | Polytetrafluoroethylene (PTFE) | Brass | Gold | 85 °C | -40 °C |
