747786 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

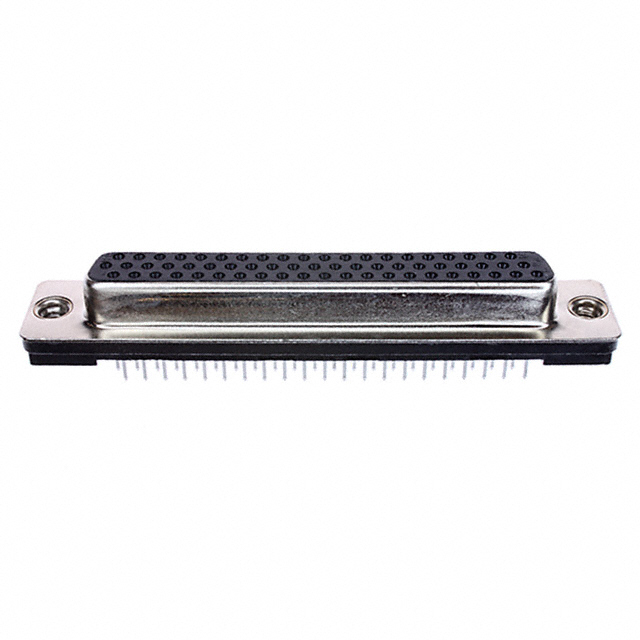

CONN D-SUB HD RCPT 62P VERT SLDR
| Part | Color | Termination | Voltage Rating | Connector Style | Flange Feature | Shell Material, Finish | Contact Finish | Dielectric Material | Current Rating (Amps) | Number of Rows | Shell Size, Connector Layout | Number of Positions | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Solder | 125 VDC | D-Sub High Density | Housing/Shell (4-40) | Nickel Plated Steel | Gold | Glass Filled Polybutylene Terephthalate (PBT) Polyester | 1.5 A | 3 | 4 | 62 | Through Hole | Phosphor Bronze | 0.76 Ám | 30 Áin | Signal | Receptacle Female Sockets | 105 ░C | -55 °C | UL94 V-0 |
