SJS82 Series

Catalog

CONN PLUG FMALE 3POS GOLD CRIMP

Part	Current Rating	Termination	Fastening Type	Primary Material	Number of Positions	Contact Finish - Mating	Shell Size - Insert	Shell Size - Insert	Connector Type	Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Ingress Protection	Shell Material	Type	Shielding	Ingress Protection Description	Ingress Protection IP Rating	Contact Shape	Material Flammability Rating	Housing Color	Contact Size	Note	Contact Type
McGill Microwave Systems SJS820101	7.5 A	Crimp	Detent Lock	Plastic	3	Gold	8	8	Female Sockets Plug	A	125 °C	-65 °C	Free Hanging (In-Line)	Environment Sealed	Nylon 6/6 Polyamide (PA66)

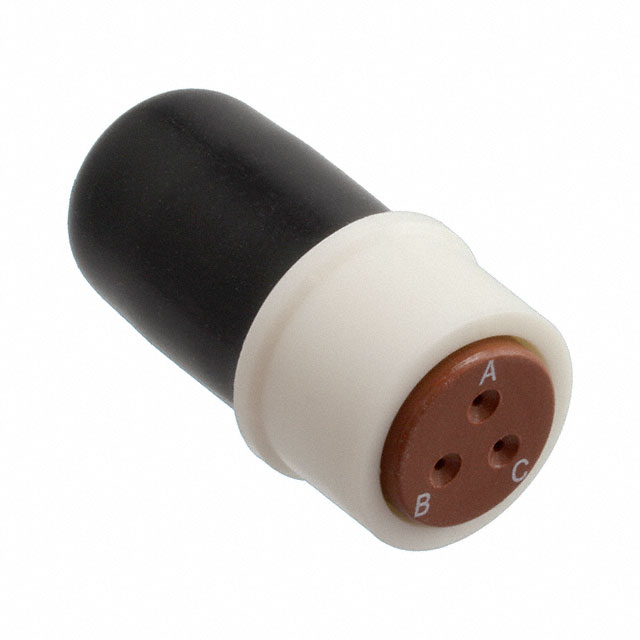

McGill Microwave Systems SJS820210			Detent Lock		3		8	8	Receptacle Housing	B	95 °C	-55 °C	Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)	For Male Pins	Unshielded	Dust Tight Waterproof	IP67	Circular	UL94 V-0	White	20	Contacts Not Included	Crimp

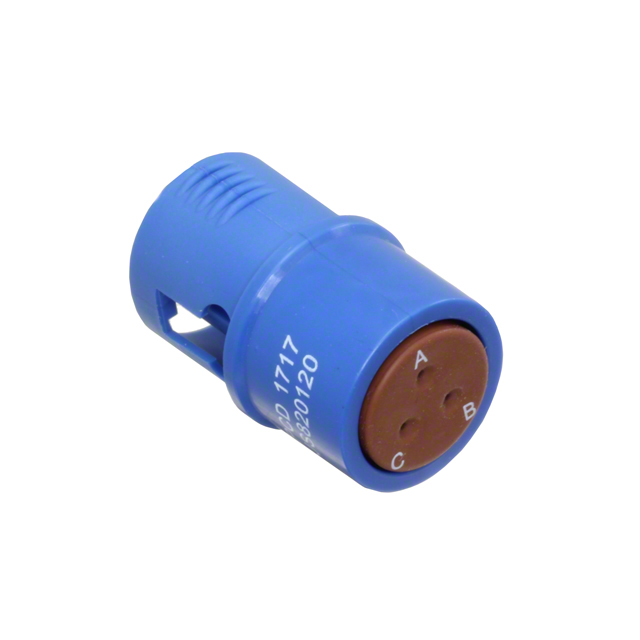

McGill Microwave Systems SJS820120			Detent Lock		3		8	8	Plug Housing	C	95 °C	-55 °C	Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)	For Female Sockets	Unshielded	Dust Tight Waterproof	IP67	Circular	UL94 V-0	Blue	20	Contacts Not Included	Crimp
McGill Microwave Systems SJS820220			Detent Lock		3		8	8	Receptacle Housing	C	95 °C	-55 °C	Free Hanging (In-Line)		Nylon 6/6 Polyamide (PA66)	For Male Pins	Unshielded	Dust Tight Waterproof	IP67	Circular	UL94 V-0	Blue	20	Contacts Not Included	Crimp
