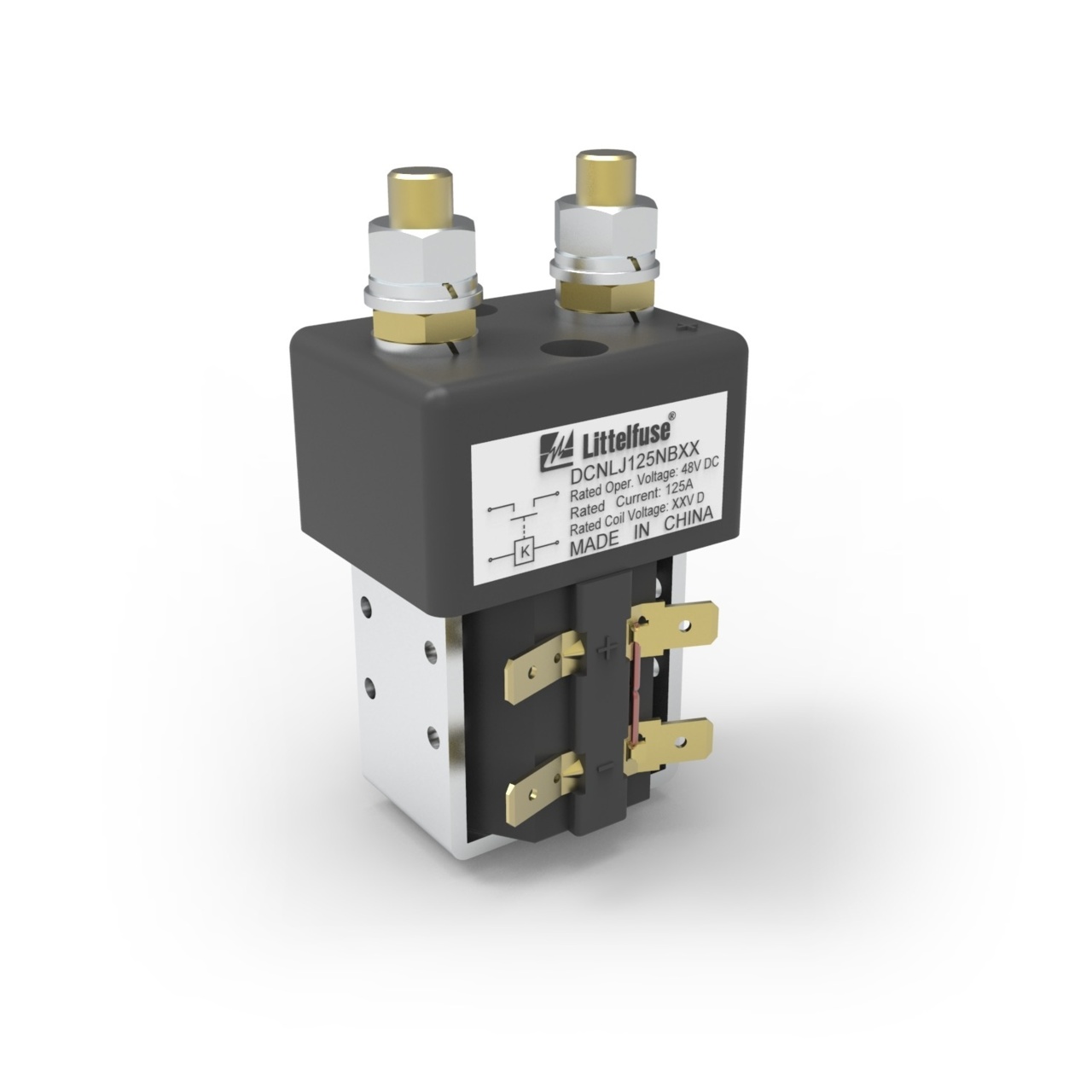

DCNLJ125NB24 Series

DCNLJ 125A 48V NP 24Vcoil

Catalog

DCNLJ 125A 48V NP 24Vcoil

Part	Coil Voltage	Switching Voltage DC (Max)	Contact Rating (Current)	Must Release Voltage	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Form A Count	Contact Form	Quick Connect Size (0.250")	Termination Style	Mounting Type
LITTELFUSE DCNLJ125NB24	24 VDC	60 VDC	125 A	2 VDC	16.8 VDC	-40 °C	85 °C	1	SPST-NO	0.25 in	Quick Connect Screw Terminal	Chassis Mount

Catalog

DCNLJ 125A 48V NP 24Vcoil

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 125A High-Current High-Voltage DC Contactor Relay has a normally open contact arrangement and features a contact voltage drop of ≤80 mV @ 100A.This model of the DCNLJ125 series (DCNLJ125NB24) DC contactor has a 24V coil and non-polarized contacts rated for 48V (typical) and 60V (max).
