ELFH022 Series

Catalog

TERM BLOCK HDR 2POS 5.08MM

Part	Number of Levels	Contact Mating Finish	Type	Positions Per Level	Color	Voltage - UL	Current - UL	Termination Style	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Mounting Type	Header Orientation Angle	Header Orientation	Insulation Height	Housing Material	Contact Material	Material Flammability Rating	Contact Tail Length
McGill Microwave Systems ELFH02230	1	Tin	Header Male Pins Shrouded (4 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole	90 °	Right Angle
McGill Microwave Systems ELFH02230	1	Tin	Header Male Pins Shrouded (4 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole	90 °	Right Angle	0.319 in	Nylon 4/6 PA46 Polyamide	Brass	UL94 V-0

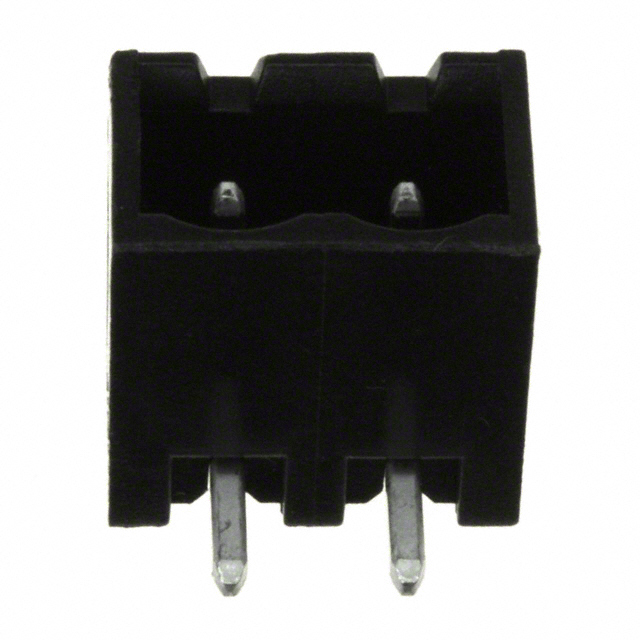

McGill Microwave Systems ELFH02210	1	Tin	Header Male Pins Shrouded (4 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole	90 °	Right Angle

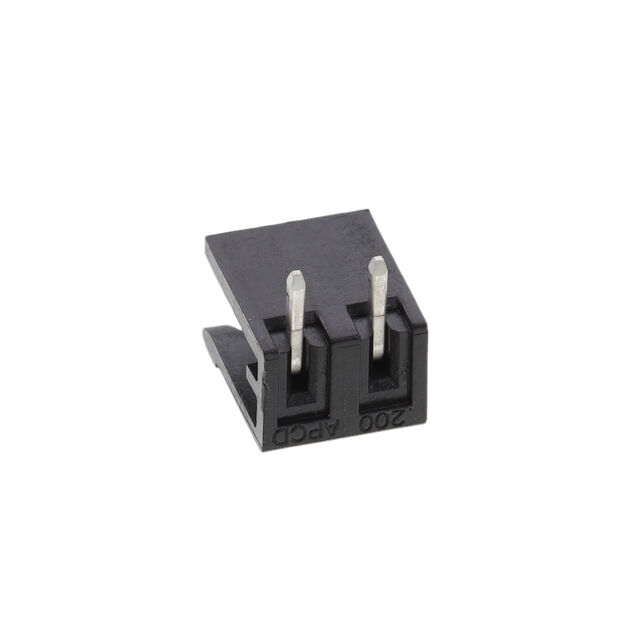

McGill Microwave Systems ELFH02220	1	Tin	Header Male Pins Shrouded (2 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole	90 °	Right Angle	0.319 in	PBT Polybutylene Terephthalate	Brass	UL94 V-0	0.155 in
McGill Microwave Systems ELFH02260	1	Tin	Header Male Pins Shrouded (2 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole		Vertical
McGill Microwave Systems ELFH02220	1	Tin	Header Male Pins Shrouded (2 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole	90 °	Right Angle
McGill Microwave Systems ELFH02260	1	Tin	Header Male Pins Shrouded (2 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole		Vertical	0.475 in	PBT Polybutylene Terephthalate	Brass	UL94 V-0	0.155 in
McGill Microwave Systems ELFH02210	1	Tin	Header Male Pins Shrouded (4 Side)	2	Black	300 V	15 A	Solder	5.08 mm	-40 °C	105 °C	2	Through Hole	90 °	Right Angle	0.319 in	PBT Polybutylene Terephthalate	Brass	UL94 V-0
