000-34 Series

Catalog

CONN N PLUG 50 OHM SOLDER

Part	Center Contact Plating	Body Material	Mating Cycles	Dielectric Material	Body Finish	Connector Type	Fastening Type	Shield Termination	Number of Ports	Cable Group	Contact Termination	Housing Color	Impedance	Connector Style	Center Contact Material	Mounting Type	Mounting Feature	Frequency - Max	Ingress Protection	Includes Total Count	Includes	Voltage Rating	Operating Temperature (Min)	Operating Temperature (Max)	For Use With/Related Products	Features	Color	Accessory Type	Impedance	Center Gender	Adapter Series	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Adapter Type	Conversion Type	Convert From (Adapter End)

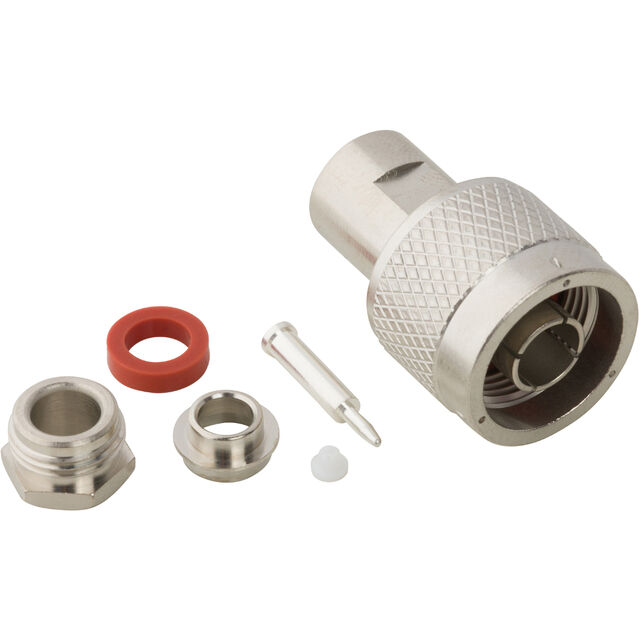

McGill Microwave Systems 000-34525	Silver	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Nickel	Male Pin Plug	Threaded	Clamp	1	140 210 59B 62 8263 8279 9209 Belden 8241 RG-59	Solder	Silver	50 Ohm	N Type	Brass
McGill Microwave Systems 000-34475	Silver	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Nickel	Female Socket Recepture	Threaded	Solder	1		Solder Cup	Silver	50 Ohm	Triaxial	Beryllium Copper	Panel Mount	Bulkhead Front Side Nut	300 MHz	Weatherproof	4 pcs	Connector Gasket Lockwasher Nut	5000 V	-65 °C	165 °C
McGill Microwave Systems 000-34275		Brass			Nickel									Triaxial											Triaxial Connectors	Chain	Silver	Cap (Cover) Dust
McGill Microwave Systems 000-34400-1003	Silver	Brass	500 cycles	Copolymer	Nickel	Female Socket Jack	Threaded	Clamp	1		Solder	Silver		Triaxial	Beryllium Copper														Non-Constant
McGill Microwave Systems 000-34125							Threaded						50 Ohm																	Female Male	N to UHF	N Plug	Male Pin	Plug to Jack	Between Series	Female Socket UHF Jack

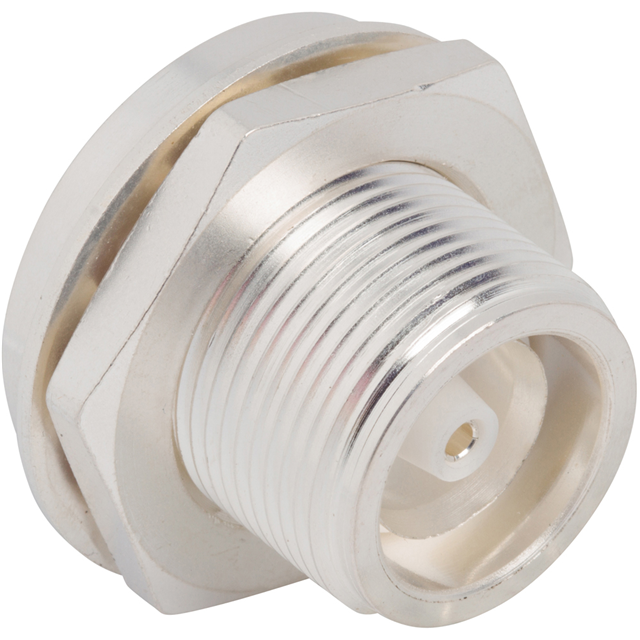

McGill Microwave Systems 000-34475-1003	Silver	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Silver	Female Socket Recepture	Threaded	Solder	1		Solder Cup	Silver		Triaxial	Beryllium Copper	Panel Mount	Bulkhead Front Side Nut												Non-Constant
McGill Microwave Systems 000-34450	Silver	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	Nickel	Female Socket Recepture	Threaded	Solder	1		Solder Cup	Silver	50 Ohm	Triaxial	Beryllium Copper	Panel Mount	Bulkhead Front Side Nut	300 MHz	Weatherproof	4 pcs	Connector Gasket Lockwasher Nut	5000 V	-65 °C	165 °C
