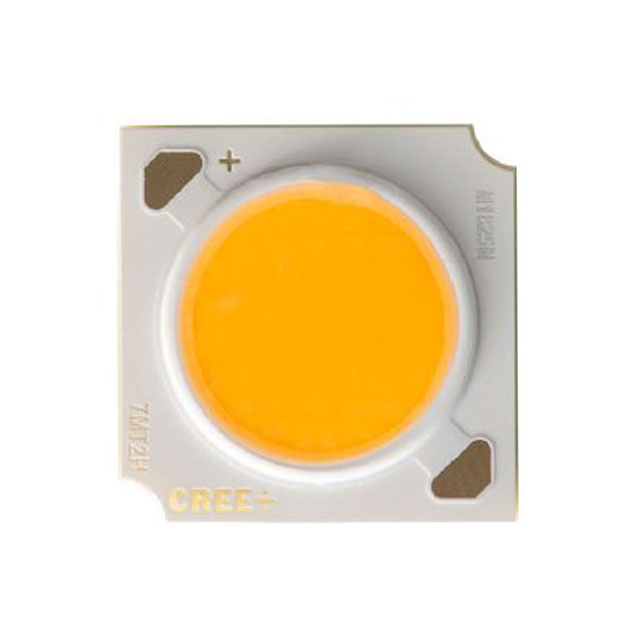

CMA1825 Series

Catalog

LED COB XLAMP WARM WHT SQU 3000K

Part	Height	Lens Type	Current - Test	Light Emitting Surface (LES) Diameter	CCT (K)	CCT Description	Configuration	Color	Voltage - Forward (Vf) (Typ)	Current - Max	Viewing Angle	Type	CRI (Color Rendering Index)	Luminous Flux	Size / Dimension Width	Size / Dimension Length	Lumens/Watt	Temperature - Test	Luminous Flux (Typical)
CreeLED, Inc. CMA1825-0000-00PN0Z0A30H	1.7 mm	Flat	700 mA	12 mm	3000 K	2-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	95	2700 lm	17.85 mm	17.85 mm	111 lm/W	85 °C
CreeLED, Inc. CMA1825-0000-000N0H0A50G	1.7 mm	Flat	700 mA	12 mm	5000 K	3-Step MacAdam Ellipse	Square	Cool White	34.6 V	1.6 A	115 °	Chip On Board (COB)	80		17.85 mm	17.85 mm	149 lm/W	85 °C	3598 lm
CreeLED, Inc. CMA1825-0000-00PN0U0A30U	1.7 mm	Flat	700 mA	12 mm	3000 K	3-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	90		17.85 mm	17.85 mm		85 °C
CreeLED, Inc. CMA1825-0000-000N0H0A30G	1.7 mm	Flat	700 mA	12 mm	3000 K	3-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	80		17.85 mm	17.85 mm	139 lm/W	85 °C	3370 lm
CreeLED, Inc. CMA1825-0000-00PN0Z0A40H	1.7 mm	Flat	700 mA	12 mm	4000 K	2-Step MacAdam Ellipse	Square	Neutral White	34.6 V	1.6 A	115 °	Chip On Board (COB)	95		17.85 mm	17.85 mm		85 °C
CreeLED, Inc. CMA1825-0000-00PN0U0A31Q	1.7 mm	Flat	700 mA	12 mm	3100 K	3-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	90		17.85 mm	17.85 mm		85 °C
CreeLED, Inc. CMA1825-0000-000N0Z0A30H	1.7 mm	Flat	700 mA	12 mm	3000 K	2-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	95		17.85 mm	17.85 mm	103 lm/W	85 °C	2497 lm
CreeLED, Inc. CMA1825-0000-000N0B0A30E	1.7 mm	Flat	700 mA	12 mm	3000 K	5-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	70		17.85 mm	17.85 mm	147 lm/W	85 °C	3557 lm
CreeLED, Inc. CMA1825-0000-000N0H0A27H	1.7 mm	Flat	700 mA	12 mm	2700 K	2-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	80		17.85 mm	17.85 mm	134 lm/W	85 °C	3234 lm
CreeLED, Inc. CMA1825-0000-00PN0U0A35H	1.7 mm	Flat	700 mA	12 mm	3500 K	2-Step MacAdam Ellipse	Square	Warm White	34.6 V	1.6 A	115 °	Chip On Board (COB)	90	3228 lm	17.85 mm	17.85 mm	133 lm/W	85 °C
