XCZU9 Series

Catalog

IC SOC CORTEX-A53 900FCBGA

Part	Number of I/O	Peripherals	RAM Size	Connectivity	Architecture	Package Width	Package Name	Package Length	Primary Attributes	Core Processor	Speed	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Interconnect System	For Use With/Related Products	Suggested Programming Environment	Platform	Utilized IC / Part	Type	Contents
AMD / Xilinx XCZU9EG-1FFVC900I	204	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	31 mm	900-FCBGA	31 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.2 GHz 500 MHz 600 MHz	900-BBGA FCBGA	100 °C	-40 °C
AMD / Xilinx XCZU9EG-3FFVC900E	204	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	31 mm	900-FCBGA	31 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.5 GHz 600 MHz	900-BBGA FCBGA	100 °C	0 °C
AMD / Xilinx XCZU9EG-2FFVB1156I	328	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	35 mm	1156-FCBGA	35 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.3 GHz 533 MHz 600 MHz	1156-BBGA FCBGA	100 °C	-40 °C
AMD / Xilinx XCZU9EG-2FFVC900E	204	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	31 mm	900-FCBGA	31 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.3 GHz 533 MHz 600 MHz	900-BBGA FCBGA	100 °C	0 °C
AMD / Xilinx XCZU9EG-1FFVC900E	204	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	31 mm	900-FCBGA	31 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.2 GHz 500 MHz 600 MHz	900-BBGA FCBGA	100 °C	0 °C
AMD / Xilinx XCZU9EG-L1FFVC900I	204	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	31 mm	900-FCBGA	31 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	ARM Mali™-400 MP2 Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.2 GHz 500 MHz 600 MHz	900-BBGA FCBGA	100 °C	-40 °C

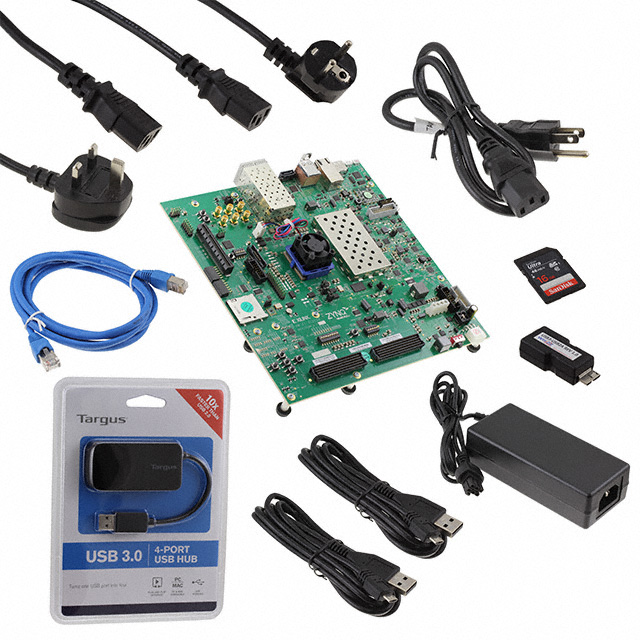

AMD / Xilinx EK-U1-ZCU102-G															FMC Pmod	XCZU9EG	Vivado	Zynq UltraScale+ MPSoC ZCU102	XCZU9EG	FPGA + MCU/MPU SoC	Accessories Board Cable Power Supply
AMD / Xilinx XCZU9EG-3FFVB1156E	328	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	35 mm	1156-FCBGA	35 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	Dual ARM®Cortex™-R5 with CoreSight™ Quad ARM® Cortex®-A53 MPCore™ with CoreSight™	1.5 GHz 600 MHz	1156-BBGA FCBGA	100 °C	0 °C
AMD / Xilinx XCZU9CG-2FFVB1156E	328	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	35 mm	1156-FCBGA	35 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	1.3 GHz 533 MHz	1156-BBGA FCBGA	100 °C	0 °C
AMD / Xilinx XCZU9CG-1FFVB1156E	328	DMA WDT	256 KB	CANbus EBI EMI Ethernet I2C MMC SD SDIO SPI UART USART USB OTG	FPGA MCU	35 mm	1156-FCBGA	35 mm	599K+ Logic Cells Zynq®UltraScale+™ FPGA	Dual ARM® Cortex®-A53 MPCore™ with CoreSight™ Dual ARM®Cortex™-R5 with CoreSight™	1.2 GHz 500 MHz	1156-BBGA FCBGA	100 °C	0 °C
