ADAQ23875 Series
Manufacturer: Analog Devices Inc./Maxim Integrated
Beta
⌘K
16-BIT, 15 MSPS, ΜMODULE DATA ACQUISITION SOLUTION
| Part | Type | Package / Case | Resolution (Bits) | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Supply (Range 2 Minimum) | Voltage - Supply (Range 2 Maximum) | Voltage - Supply (Range 1 Minimum) | Voltage - Supply (Range 1 Maximum) | Number of Channels | Sampling Rate (Per Second) | Package Name | Package Width | Package Length | Voltage Supply Source | Data Interface | Supplied Contents | Number of Bits | Input Voltage (Max) | Input Voltage (Min) | Contents | Power (Typ) | Utilized IC / Part | Number of A/D Converters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Analog Devices Inc./Maxim Integrated | Data Acquisition System (DAS) | 100-FBGA CSPBGA | 16 b | Surface Mount | -40 °C | 85 °C | 4.75 V | 5.25 V | 4.75 V | 5.25 V | 1 | 15 MHz | 100-CSPBGA | 9 mm | 9 mm | Single Supply | LVDS - Serial | ||||||||

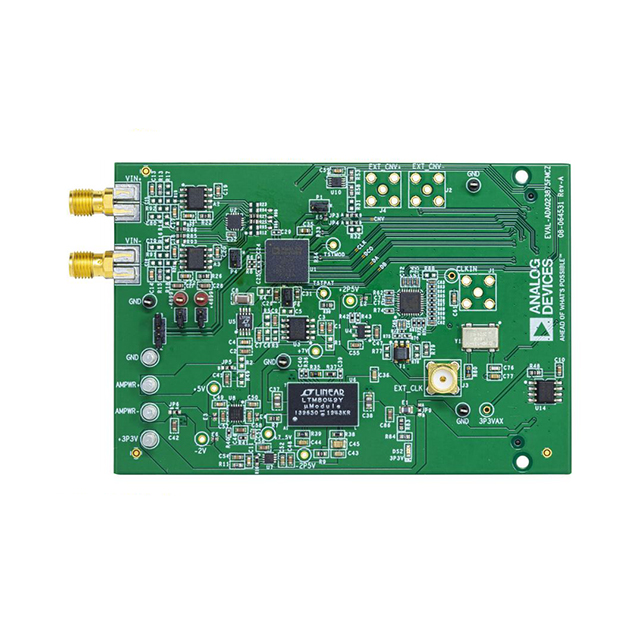

 Analog Devices Inc./Maxim Integrated | 15 MHz | LVDS Serial Serial LVDS | Board(s) | 16 bits | 2.048 V | -2.048 V | Board | 143 mW | ADAQ23875 | 1 count |
