Q-030520 Series

Catalog

CBL ASSY BNC-TNC JACK-PLUG 6'

Part	Frequency - Max	2nd Connector Mounting Type	2nd Connector	Style	Overall Impedance	1st Connector Mounting Type	1st Contact Gender	Color	Cable Type	Features	1st Connector	Length	2nd Contact Gender	Length (ft)

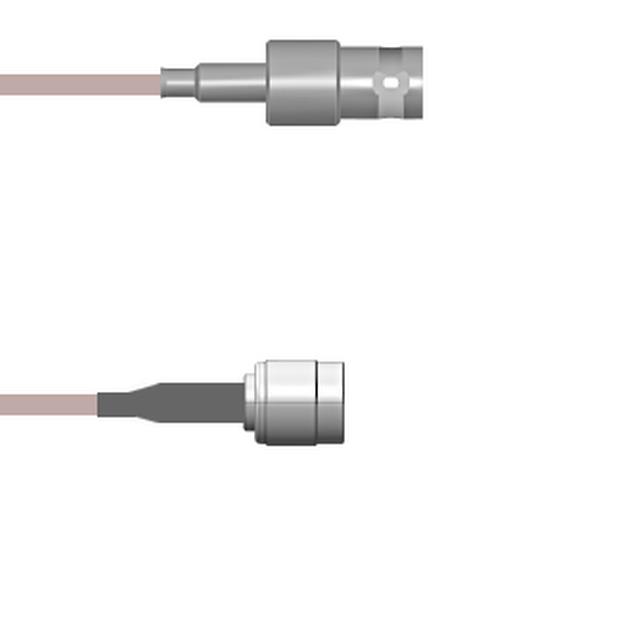

McGill Microwave Systems Q-030520005072i	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	72 in	Male
McGill Microwave Systems Q-030520005.75M	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	29.53 in	Male

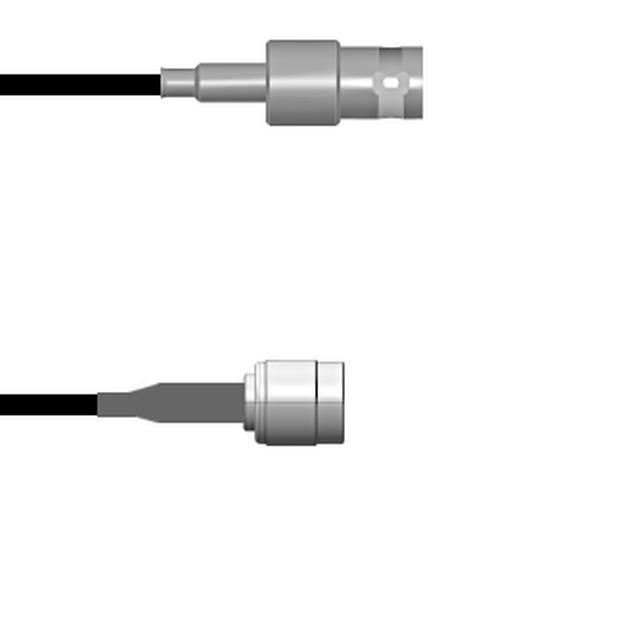

McGill Microwave Systems Q-030520003001M	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Black	174 RG	Shielded	BNC Jack	39.4 in	Male
McGill Microwave Systems Q-030520005012i	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	12 in	Male
McGill Microwave Systems Q-030520005003M	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	118.1 in	Male
McGill Microwave Systems Q-0305200052.5M	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	98.4 in	Male	8.2 ft
McGill Microwave Systems Q-030520005036i	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	36 in	Male
McGill Microwave Systems Q-030520005003i	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	3 "	Male
McGill Microwave Systems Q-030520003003i	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Black	174 RG	Shielded	BNC Jack	3 "	Male
McGill Microwave Systems Q-030520005.25M	4 GHz	Free Hanging (In-Line)	TNC Plug	BNC TNC	50 Ohms	Free Hanging (In-Line)	Female	Copper	316 RG	Shielded	BNC Jack	9.843 in	Male
