AD9775 Series

Catalog

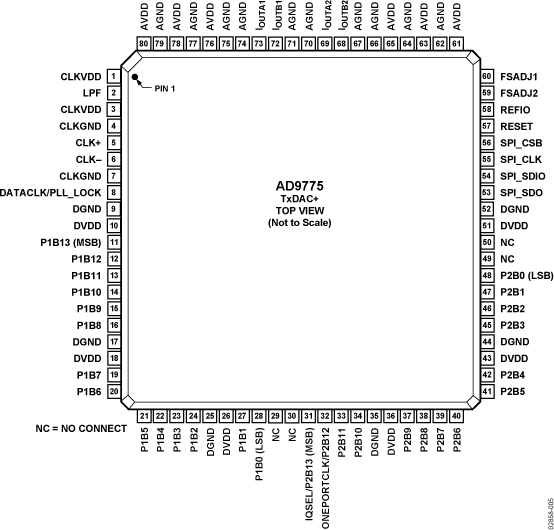

14-BIT, 160 MSPS, 2×/4×/8× INTERPOLATING DUAL TXDAC+®D/A CONVERTER

Part	Voltage - Supply, Digital (Min)	Voltage - Supply, Digital (Max)	Data Interface	Number of D/A Converters	INL (LSB) Tolerance	DNL (LSB) Tolerance	Differential Output	Architecture	Number of Bits	Output Type	Package Length	Package Name	Package Width	Mounting Type	Package / Case	Reference Type	Settling Time (Typical)	Voltage - Supply, Analog (Min)	Voltage - Supply, Analog (Max)	Operating Temperature (Min)	Operating Temperature (Max)
Analog Devices Inc./Maxim Integrated AD9775BSVZRL	3.1 V	3.5 V	Parallel	2 count	1.5 LSB	1 LSB	Yes	Oversampling Interpolating DAC	14 bits	Current - Unbuffered	12 mm	80-TQFP-EP	12 mm	Surface Mount	80-TQFP Exposed Pad	External Internal	11 ns	3.1 V	3.5 V	-40 °C	85 °C
Analog Devices Inc./Maxim Integrated AD9775BSVZ	3.1 V	3.5 V	Parallel	2 count	1.5 LSB	1 LSB	Yes	Oversampling Interpolating DAC	14 bits	Current - Unbuffered	12 mm	80-TQFP-EP	12 mm	Surface Mount	80-TQFP Exposed Pad	External Internal	11 ns	3.1 V	3.5 V	-40 °C	85 °C
