Q-0B0310 Series

Catalog

CBL ASSY BNC-SMA JACK-JACK 6"

Part	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	2nd Connector Mounting Feature	1st Contact Gender	1st Connector	Frequency - Max	Overall Impedance	Length	Style	2nd Connector	Color	2nd Contact Gender	Features	Length (ft)

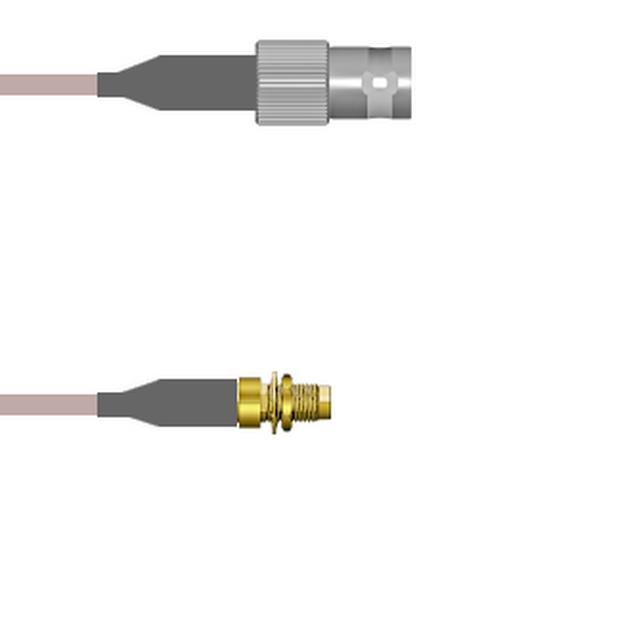

McGill Microwave Systems Q-0B031000H006i	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	0.5 ft	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H.75M	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	29.53 in	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H.25M	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	9.843 in	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H024i	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	24 in	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H048i	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	48 in	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H108i	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	9 ft	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H1.5M	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	59.1 in	BNC SMA	SMA Jack	Copper	Female	Shielded	4.9 ft
McGill Microwave Systems Q-0B031000H009i	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	228.6 mm	BNC SMA	SMA Jack	Copper	Female	Shielded
McGill Microwave Systems Q-0B031000H060i	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms	1524 mm	BNC SMA	SMA Jack	Copper	Female	Shielded	5 ft
McGill Microwave Systems Q-0B031000H002M	Panel Mount	Free Hanging (In-Line)	142 RG	Bulkhead - Front Side Nut	Female	BNC Jack	4 GHz	50 Ohms		BNC SMA	SMA Jack	Copper	Female	Shielded	6.6 ft
