920-26 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

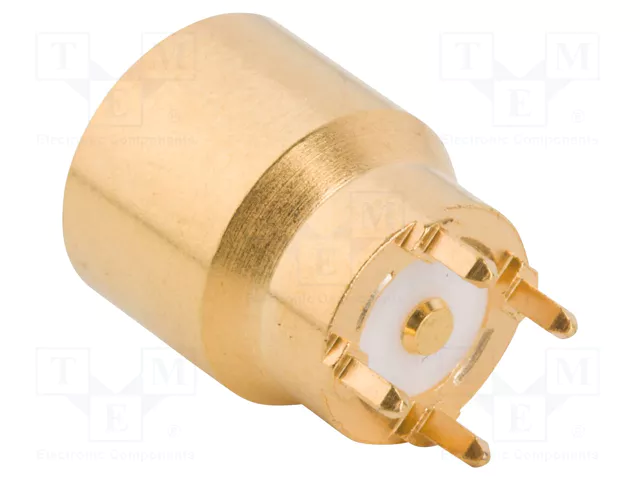

AFI STRAIGHT PCB SMOOTH BORE JACK THROUGH HOLE 50 OHM
| Part | Connector Type | Fastening Type | Impedance | Frequency - Max | Connector Style | Housing Color | Center Contact Material | Number of Ports | Mounting Type | Contact Termination | Shield Termination | Body Finish | Operating Temperature (Min) | Operating Temperature (Max) | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Female Socket Jack | Snap-On | 50 Ohm | 6000 MHz | AFI | Gold | Beryllium Copper | 1 | Surface Mount Through Hole | Solder | Solder | Gold | -65 °C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 100 cycles |
 McGill Microwave Systems | Female Socket Jack | Snap-On | 50 Ohm | 6000 MHz | AFI | Gold | Beryllium Copper | 1 | Surface Mount Through Hole | Solder | Solder | Gold | -65 °C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 100 cycles |
 McGill Microwave Systems | Male Pin Plug | Snap-On | 50 Ohm | 6000 MHz | AFI | Gold | Beryllium Copper | 1 | Surface Mount Through Hole | Solder | Solder | Gold | -65 °C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 100 cycles |
 McGill Microwave Systems | Female Socket Jack | Snap-On | 50 Ohm | 6000 MHz | AFI | Gold | Beryllium Copper | 1 | Surface Mount Through Hole | Solder | Solder | Gold | -65 °C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 100 cycles |
 McGill Microwave Systems | Male Pin Plug | Snap-On | 50 Ohm | 6000 MHz | AFI | Gold | Beryllium Copper | 1 | Surface Mount Through Hole | Solder | Solder | Gold | -65 °C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | Gold | 100 cycles |
