25468 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

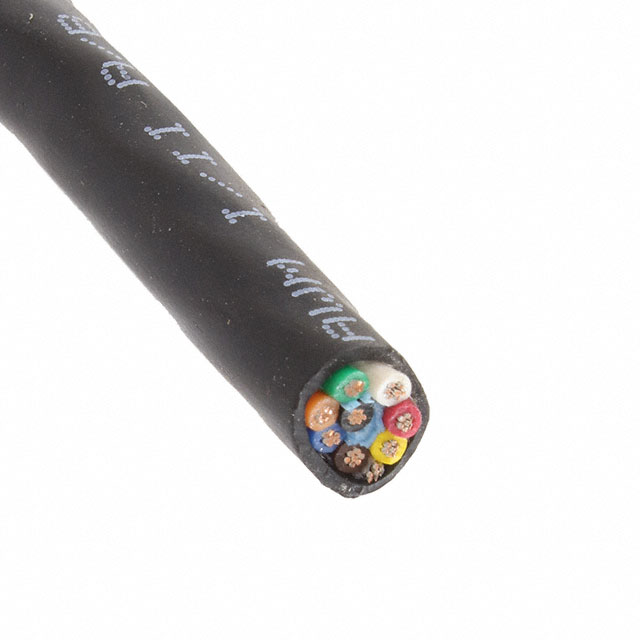

MULTI-CONDUCTOR CABLES 20 AWG 8 CONDUCTOR 300V FOIL PVC, PUR 100 FT SPOOL, BLACK
| Part | Jacket (Insulation) Thickness | Shield Type | Conductor Insulation | Number of Conductors | Conductor Material | Wire Gauge | Jacket Color | Length | Voltage | Cable Type | Features | Ratings | Conductor Strand Count | Conductor Strand Gauge | Jacket (Insulation) Material | Operating Temperature (Max) | Operating Temperature (Min) | Jacket (Insulation) Diameter | Shield Coverage | Shield Material | Length | Spool Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.032 in | Foil | Poly-Vinyl Chloride (PVC) | 8 | Copper Tinned | 20 AWG | Black | 100 ft | 300 V | Conductor Multi | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 20668 | 7 Strands | 28 | Polyurethane (PU) | 90 °C | -30 °C | 0.306 in | 100 % | Aluminum | ||
 ALPHA WIRE | 0.032 in | Foil | Poly-Vinyl Chloride (PVC) | 8 | Copper Tinned | 20 AWG | Black | 300 V | Conductor Multi | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 20668 | 7 Strands | 28 | Polyurethane (PU) | 90 °C | -30 °C | 0.306 in | 100 % | Aluminum | Enter Number of Feet in Order Quantity | 1000 ft |
