530785 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER BRD EDGE 10P 1.91MM

Part	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Mating	Features	Contact Type	Mounting Type	Insulation Material	Contact Length - Mating	Number of Rows	Shrouding	Style	Number of Positions Loaded	Fastening Type	Connector Type	Contact Material	Termination	Number of Positions	Insulation Color	Pitch - Mating
TE Connectivity AMP Connectors 1-530785-6	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	10	Blue	0.075 in
TE Connectivity AMP Connectors 1-530785-2	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	50	Blue	0.075 in
TE Connectivity AMP Connectors 1-530785-0	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	70	Blue	0.075 in
TE Connectivity AMP Connectors 530785-2	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	150	Blue	0.075 in

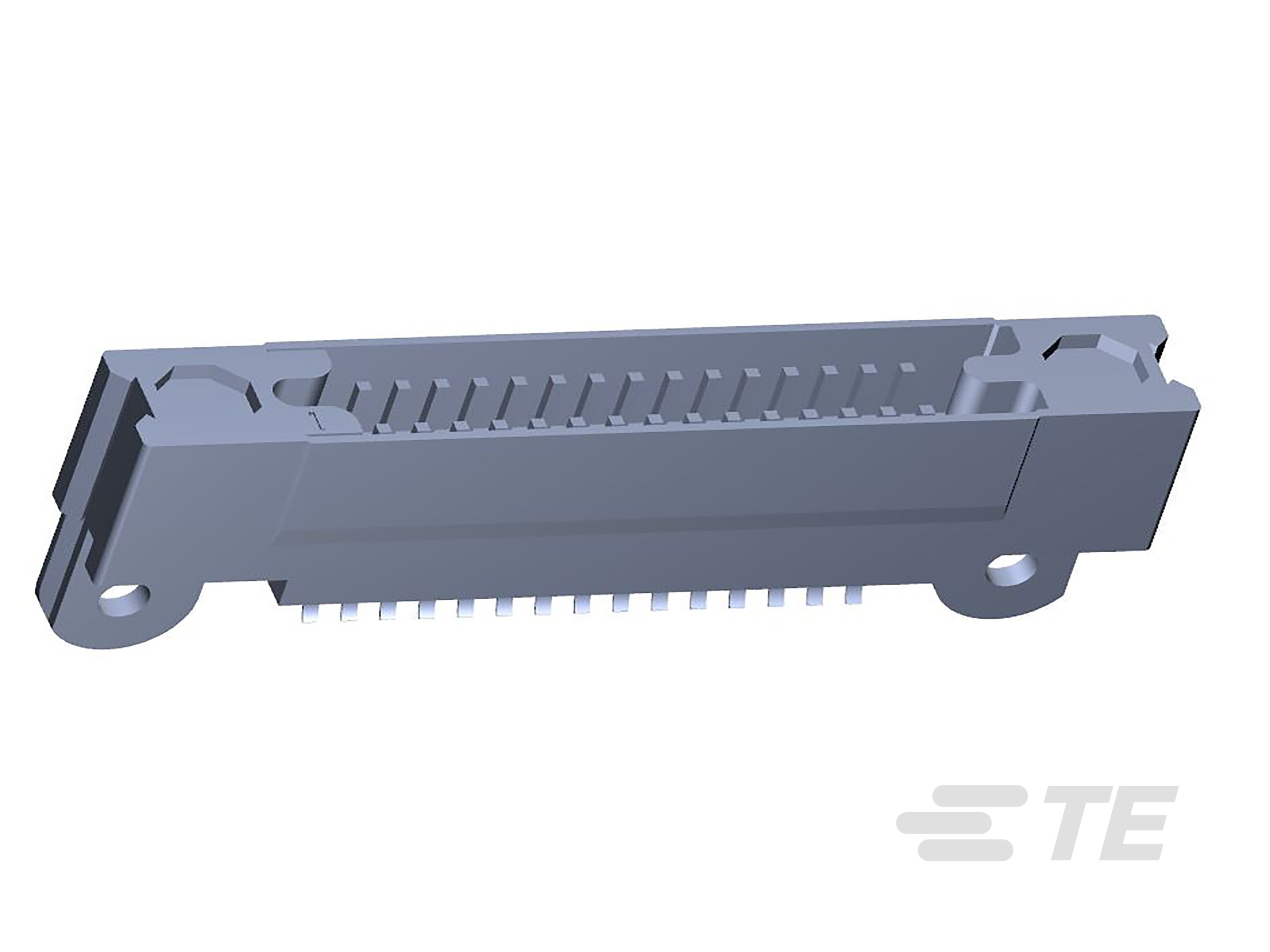

TE Connectivity AMP Connectors 1-530785-1	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	60	Blue	0.075 in
TE Connectivity AMP Connectors 1-530785-5	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	20	Blue	0.075 in
TE Connectivity AMP Connectors 1-530785-4	0.125 in	50 µin	Square	Gold	Card Extender Mating Guide	Male Pin	Board Edge Straddle Mount	Diallyl Phthalate (DAP)	0.181 in	2	Shrouded - 4 Wall	Board Board or Cable	All	Push-Pull	Header	Brass	Solder	30	Blue	0.075 in
