FLKD-05EGFS Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

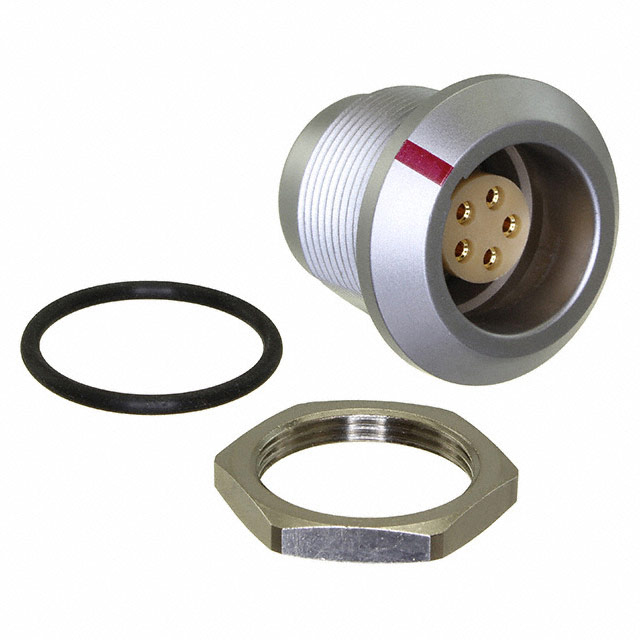

CIRCULAR CONNECTOR, FLO K SERIES, PANEL MOUNT RECEPTACLE, 5 CONTACTS, SOLDER SOCKET, PUSH-PULL
| Part | Insert Material | Shell Size - Insert | Number of Positions | Operating Temperature (Max) | Operating Temperature (Min) | Termination | Connector Type | Contact Material | Shell Finish | Applications | Shielding | Orientation | Voltage Rating | Mounting Type | Current Rating | Mounting Feature | Shell Material | Ingress Protection IP Rating | Ingress Protection Description | Contact Finish - Mating | Fastening Type | Color | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Polyphenylene Sulfide PPS | D-5 | 5 | 125 °C | -40 °C | Solder Cup | Female Sockets Receptacle | Copper Alloy | Chrome | Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement | Shielded | G | 550 V | Panel Mount | 14 A | Bulkhead Rear Side Nut | Copper Alloy | IP68 | Dust Tight Waterproof | Gold | Push-Pull | Silver | Metal |
