643657 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

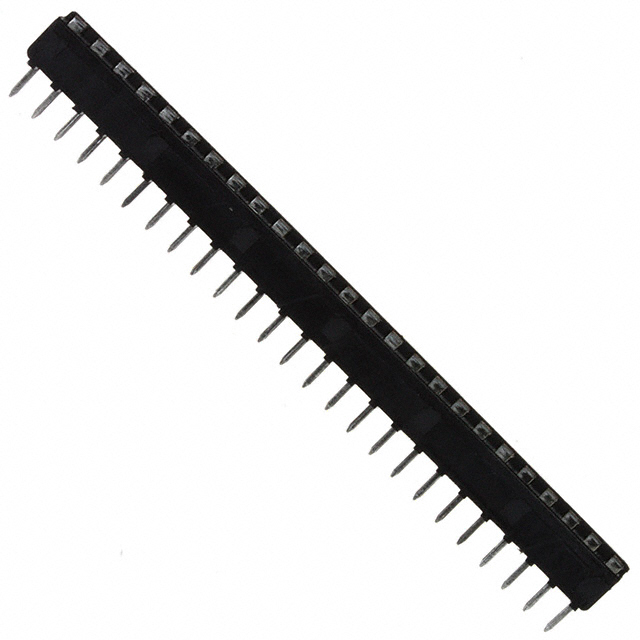

CONN SOCKET SIP 25POS TIN
| Part | Material Flammability Rating | Termination Post Length | Housing Material | Features | Grid Rows | Number of Positions or Pins (Grid) | Grid Columns | Mounting Type | Pitch - Mating | Termination | Contact Finish - Post | Contact Material - Post | Contact Material - Mating | Pitch - Post | Operating Temperature (Min) | Operating Temperature (Max) | Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 0.13 in | Glass Filled Thermoplastic | Closed Frame | 1 | 25 | 25 | Through Hole | 0.1 in | Solder | Tin | Beryllium Copper | Beryllium Copper | 0.1 in | -55 °C | 105 °C | SIP | Tin |
