AHD17 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN RCPT HSNG MALE 9POS PNL MNT
| Part | Mounting Feature | Note | Number of Positions | Housing Color | Fastening Type | Contact Shape | Type | Shielding | Mounting Type | Contact Size | Shell Material | Connector Type | Operating Temperature (Max) | Operating Temperature (Min) | Orientation | Contact Type | Ingress Protection Description | Ingress Protection IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

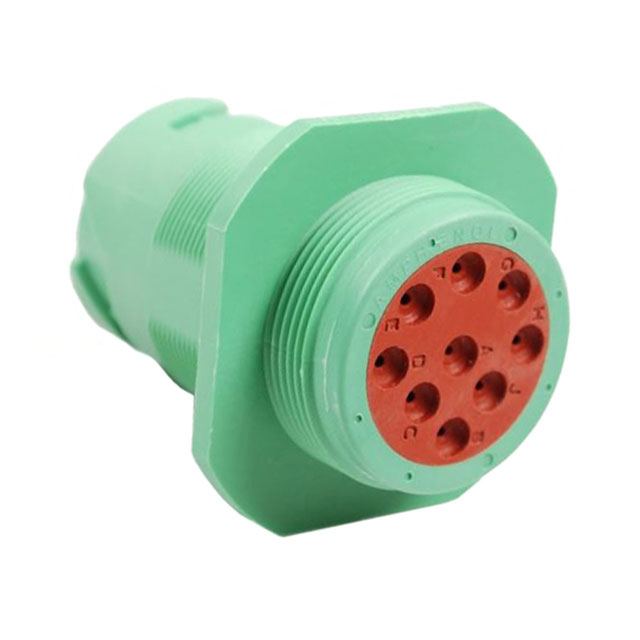

 McGill Microwave Systems | Bulkhead Front Side Nut | Contacts Not Included Jam Nut Not Included | 9 | Green | Bayonet Lock | Circular | For Male Pins | Unshielded | Panel Mount | 16 S | Thermoplastic | Receptacle Housing | 125 °C | -55 °C | Keyed | Crimp | Dust Tight Waterproof | IP67 |

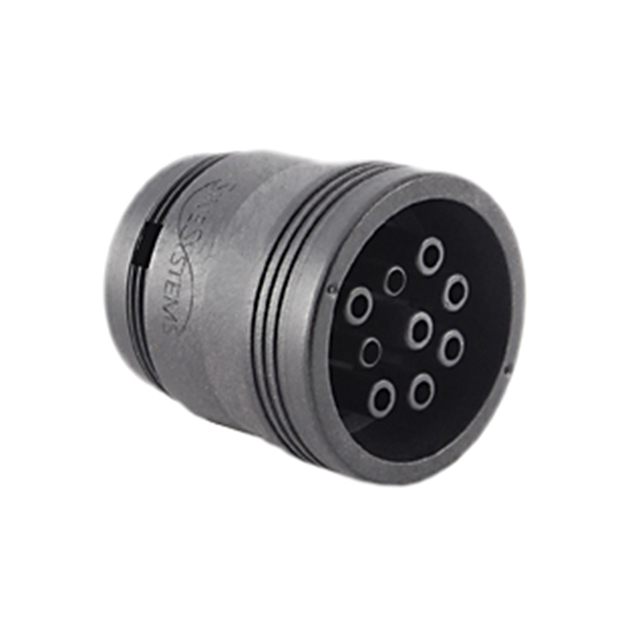

 McGill Microwave Systems | Contacts Not Included | 9 | Black | Push-Pull | Circular | For Female Sockets | Unshielded | Free Hanging (In-Line) | 16 S | Thermoplastic | Plug Housing | 125 °C | -55 °C | Keyed | Crimp | Dust Tight Waterproof | IP67 |
