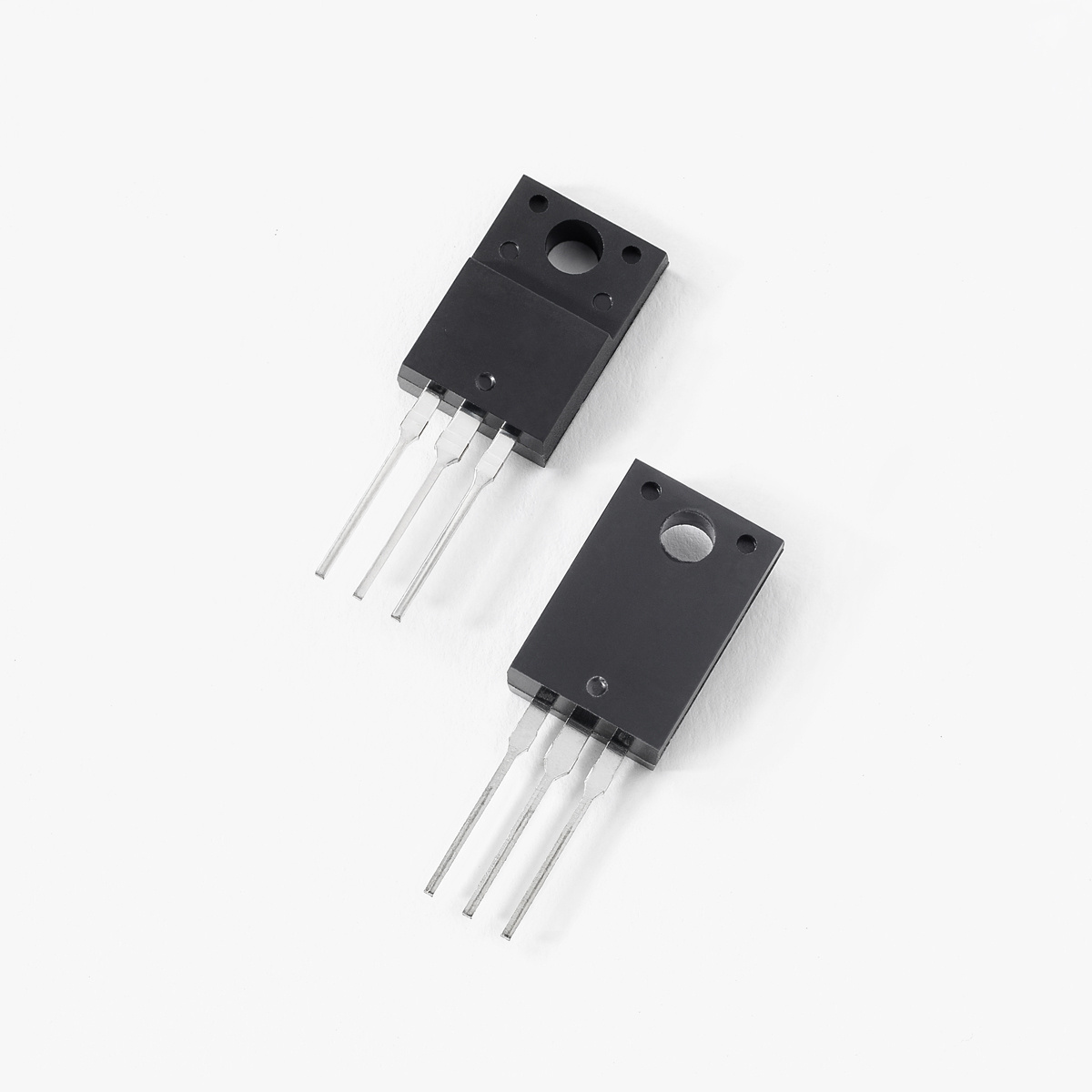

DSTF10200C Series

200V 10A Ultralow Schottky DST _ITO-220A

Catalog

200V 10A Ultralow Schottky DST _ITO-220A

Part	Package / Case	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Package Name	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io) (per Diode)	Current - Reverse Leakage	Technology	Voltage - DC Reverse (Vr) (Max)	Diode Pair Count	Diode Configuration	Mounting Type
LITTELFUSE DSTF10200C	Isolated Tab TO-220-3 Full Pack	150 °C	-55 °C	500 ns	200 mA	ITO-220AB	900 mV	5 A	10 µA	Schottky	200 V	1 pair	Common Cathode	Through Hole

Catalog

200V 10A Ultralow Schottky DST _ITO-220A

Description

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products. It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
