CLM1C Series

Catalog

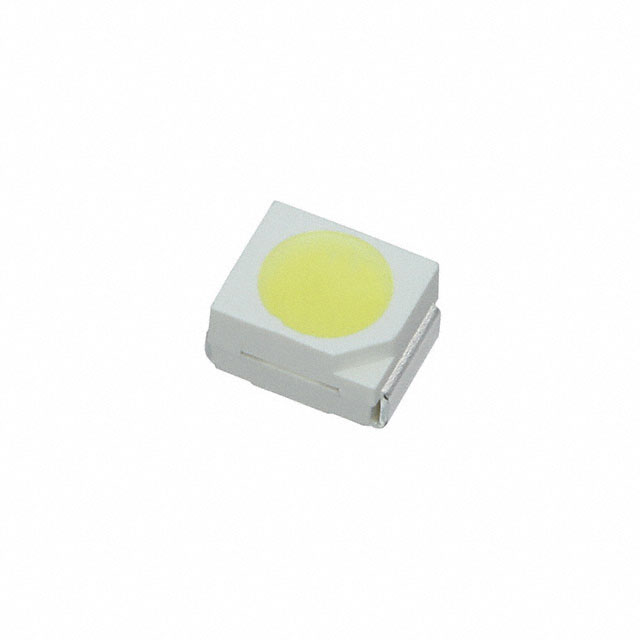

LED COOL WHITE DIFF 2PLCC SMD

Part	Size / Dimension Length	Size / Dimension Width	Voltage - Forward (Vf) (Typ)	Configuration	Current - Test	Wavelength - Dominant (Color Temperature)	Color	Millicandela Rating	Height (Max)	Lens Transparency	Package Name	Lens Color	Mounting Type	Viewing Angle	Package / Case	Lens Style
CreeLED, Inc. CLM1C-WKW-CWBXBA453	3.2 mm	2.7 mm	3.2 V	Standard	20 mA	6800 K	Cool White	1820 mcd	2.05 mm	Diffused	2-PLCC	Yellow	Surface Mount	120 °	2-SMD J-Lead	Flat Top Round
CreeLED, Inc. CLM1C-WKW-CVBWB233	3.2 mm	2.8 mm	3.2 V	Standard	20 mA	6800 K	Cool White	1350 mcd	2.05 mm	Diffused	2-PLCC	Yellow	Surface Mount	120 °	2-PLCC 2-SMD J-Lead	Flat Top Round
CreeLED, Inc. CLM1C-WKW-FVAWB153	3.2 mm	2.7 mm							2.05 mm		2-PLCC		Surface Mount	120 °	2-PLCC 2-SMD J-Lead
CreeLED, Inc. CLM1C-WKW-CWBXB453	3.2 mm	2.8 mm	3.2 V	Standard	20 mA	6800 K	Cool White	2100 mcd	2.05 mm	Diffused	2-PLCC	Yellow	Surface Mount	120 °	2-SMD J-Lead	Flat Top Round
CreeLED, Inc. CLM1C-WKW-CWBXB153	3.2 mm	2.7 mm	3.2 V	Standard	20 mA	6800 K	Cool White	1800 mcd	2.05 mm		2-PLCC		Surface Mount	120 °	2-SMD J-Lead	Flat Top Round
CreeLED, Inc. CLM1C-WKW-CXAXB153	3.2 mm	2.7 mm	3.1 V	Standard	20 mA	6800 K	Cool White	2100 mcd	2.05 mm	Diffused	2-PLCC	Yellow	Surface Mount		2-SMD J-Lead	Flat Top Round
CreeLED, Inc. CLM1C-WKW-CWBXB453	3.2 mm	2.8 mm	3.2 V	Standard	20 mA	6800 K	Cool White	2100 mcd	2.95 mm	Diffused	2-PLCC	Yellow	Surface Mount	120 °	2-SMD J-Lead	Flat Top Round
