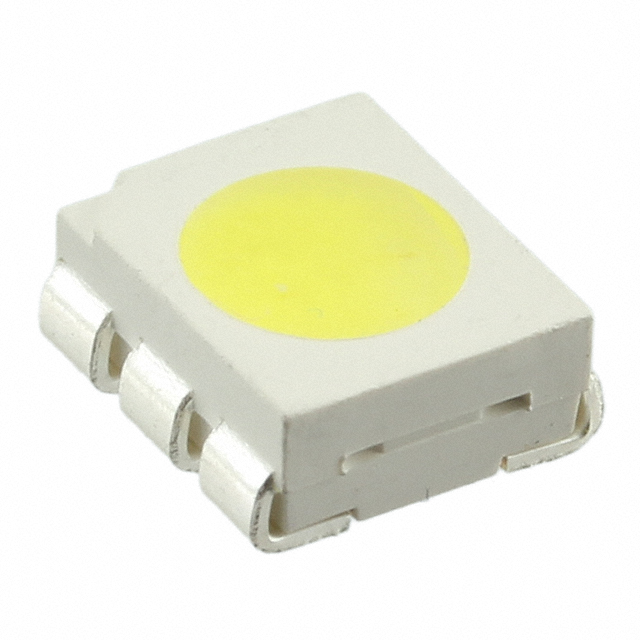

CLP6B Series

Catalog

LED WARM WHITE DIFF 6PLCC SMD

Part	Lens Style	Package / Case	Lens Color	Size / Dimension Width	Size / Dimension Length	Voltage - Forward (Vf) (Typ)	Color	Lens Transparency	Current - Test	Millicandela Rating	Package Name	Lens Diameter	Configuration	Mounting Type	Height (Max)	Wavelength - Dominant (Color Temperature)	Lens Width	Lens Length
CreeLED, Inc. CLP6B-MKW-CC0F0233	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Warm White	Diffused	50 mA	15700 mcd	6-PLCC	4 mm	Independent	Surface Mount	2.6 mm
CreeLED, Inc. CLP6B-MKW-CB0E0513	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Warm White	Diffused	50 mA	12550 mcd	6-PLCC	4 mm	Standard	Surface Mount	2.6 mm	3200 K
CreeLED, Inc. CLP6B-WKW-CD0F0453	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Cool White	Diffused	50 mA	14600 mcd	6-PLCC	4 mm	Standard	Surface Mount	2.6 mm	6800 K
CreeLED, Inc. CLP6B-WKW-CC0E0453	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Cool White	Diffused	50 mA	13500 mcd	6-PLCC	4 mm	Standard	Surface Mount	2.6 mm	6800 K
CreeLED, Inc. CLP6B-MKW-CB0F0233	Flat Top Rectangle	6-SMD J-Lead		5 mm	6 mm	3.8 V	Warm White		50 mA	14750 mcd	6-PLCC		Independent	Surface Mount	2.6 mm		5 mm	6 mm
CreeLED, Inc. CLP6B-MKW-CC0F0513	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Warm White	Diffused	50 mA	15700 mcd	6-PLCC	4 mm	Independent	Surface Mount	2.6 mm
CreeLED, Inc. CLP6B-MKW-CC0F0513	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Warm White	Diffused	50 mA	15700 mcd	6-PLCC	4 mm	Independent	Surface Mount	2.6 mm
CreeLED, Inc. CLP6B-WKW-CB0E0153	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Cool White	Diffused	50 mA	12550 mcd	6-PLCC	4 mm	Standard	Surface Mount	2.6 mm	6800 K
CreeLED, Inc. CLP6B-MKW-CB0F0133	Flat Top Rectangle	6-SMD J-Lead		5 mm	6 mm	3.8 V	Warm White		50 mA	14750 mcd	6-PLCC		Independent	Surface Mount	2.6 mm		5 mm	6 mm
CreeLED, Inc. CLP6B-MKW-CC0F0233	Flat Top Round	6-SMD J-Lead	Yellow	5 mm	6 mm	3.8 V	Warm White	Diffused	50 mA	15700 mcd	6-PLCC	4 mm	Independent	Surface Mount	2.6 mm
