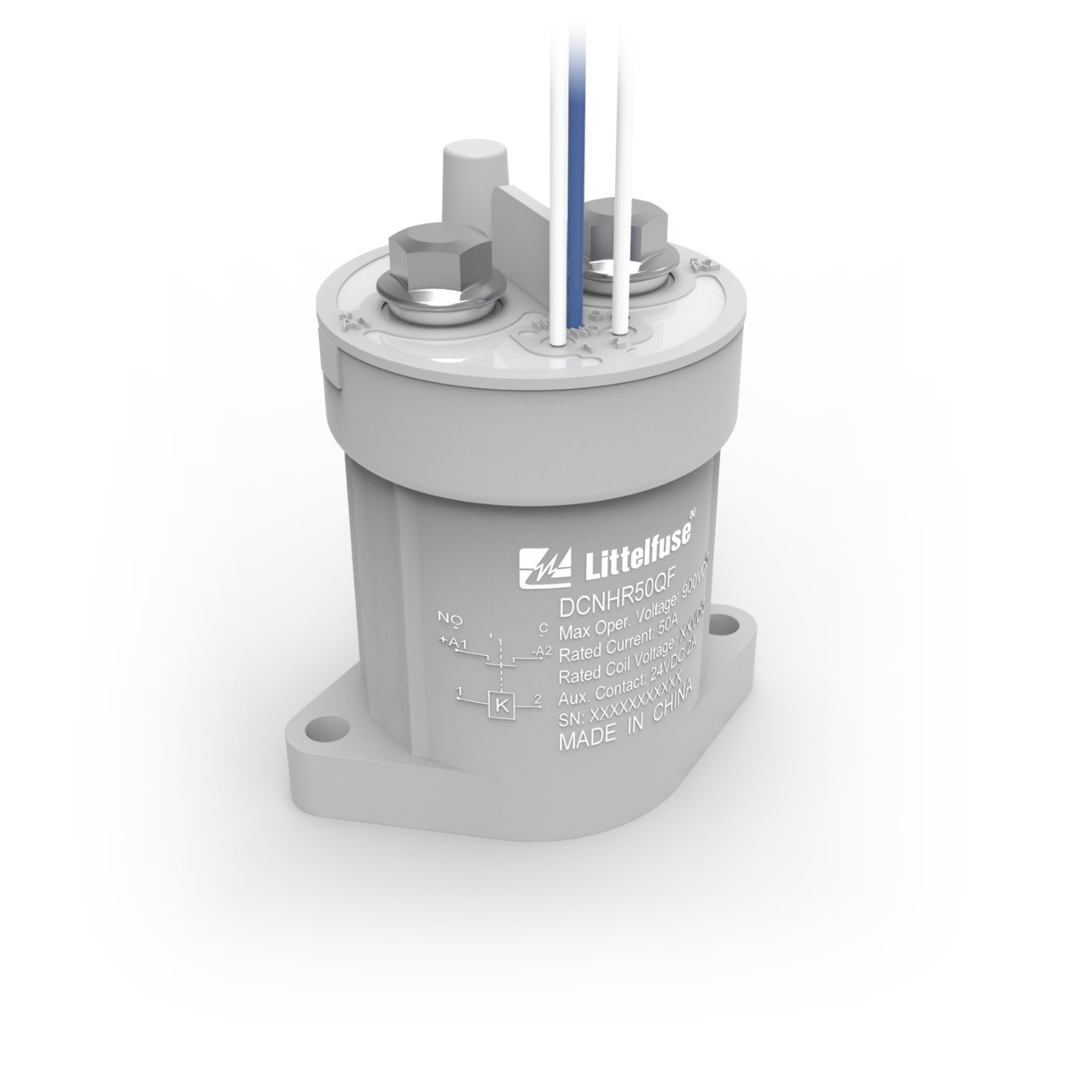

DCNHR50QF48 Series

DCNHR 50A 450V P Aux 48Vcoil

Catalog

DCNHR 50A 450V P Aux 48Vcoil

Part	Mounting Type	Form A Count	Contact Form	Coil Voltage	Switching Voltage DC (Max)	Contact Rating (Current)	Termination Style	Features	Must Release Voltage	Must Operate Voltage	Operating Temperature (Min)	Operating Temperature (Max)
LITTELFUSE DCNHR50QF48	Chassis Mount	1	SPST-NO	48 V	900 VDC	50 A	Stud Wire Leads	Auxiliary Contacts	4 VDC	33.6 VAC	-40 °C	85 °C

Catalog

DCNHR 50A 450V P Aux 48Vcoil

Description

The DCNHR Series 900V Max High-Voltage DC Contactor Relay is normally open with a low-power coil in a corrosion-resistant housing for use in harsh vehicle environments. The contactor's permanent magnet helps to achieve a high-voltage DC cutoff.This DCNHR Series contactor relay (DCNHR50QF48) is for 50A contact switching. It includes an auxiliary contact and features polarized main contacts and a 48V coil.
