RT001412 Series

Catalog

RECEPTACLE, SQUARE FLANGE, 12 PO

Part	Number of Positions	Features	Material Flammability Rating	Mounting Feature	Shielding	Connector Type	Contact Size	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Shell Finish	Insert Material	Mounting Type	Contact Type	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Shell Size - Insert Width	Shell Size - Insert Length	Note	Primary Material	Type	Housing Color	Shell Material	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)	Contact Finish Thickness - Mating	Current Rating	Termination	Color	Contact Material	Applications

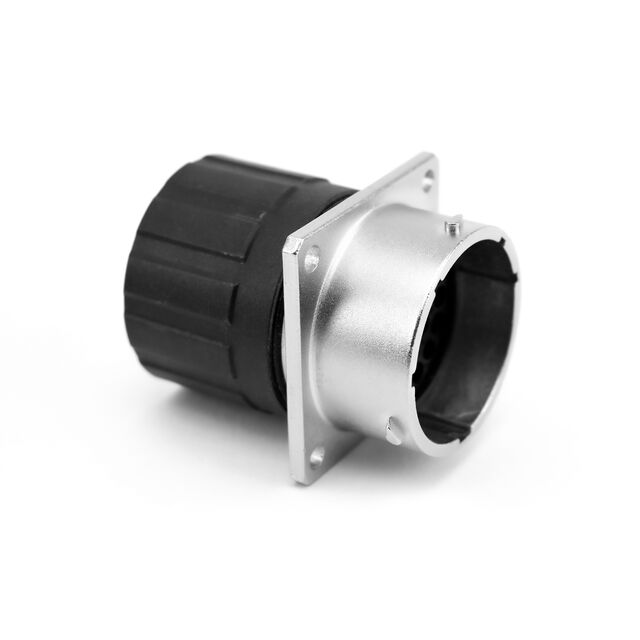

McGill Microwave Systems RT001412PNHECR	12	Cap (Cover)	UL94 V-0	Flange	Shielded	Receptacle Housing	16 S	N (Normal)	Dust Tight Waterproof	IP67	Nickel	Thermoplastic	Panel Mount	Crimp	Circular	-40 °C	105 °C	Bayonet Lock	12 mm	14 mm	Contacts Not Included	Metal	For Male Pins	Silver	Zinc Alloy
McGill Microwave Systems RT001412PNH-K	12			Flange		Male Pins Receptacle		N (Normal)	Dust Tight Waterproof	IP67	Nickel		Panel Mount			-40 °C	105 °C	Bayonet Lock	12 mm	14 mm		Metal			Zinc Die Cast	Gold	250 V	DC	Flash	13 A	Crimp	Silver
McGill Microwave Systems RT001412SNH	12		UL94 V-0	Flange	Shielded	Receptacle Housing	16 S	N (Normal)	Dust Tight Waterproof	IP67	Nickel	Thermoplastic	Panel Mount	Crimp	Circular	-40 °C	105 °C	Bayonet Lock	12 mm	14 mm	Contacts Not Included		For Female Sockets	Silver	Zinc Alloy

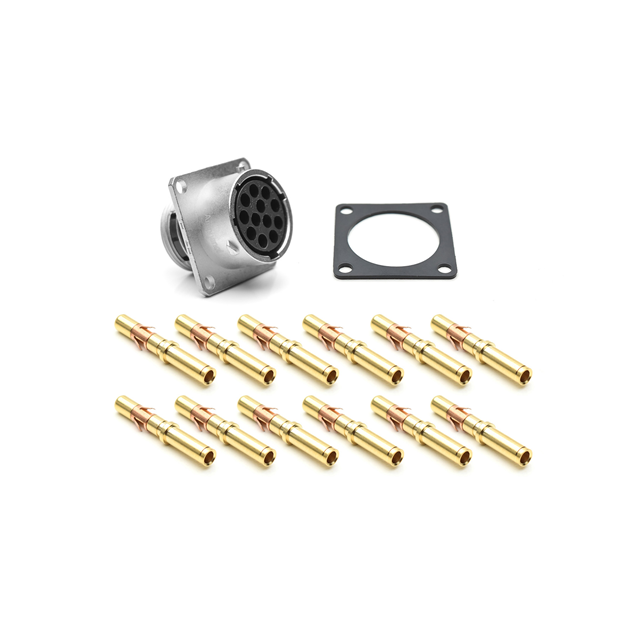

McGill Microwave Systems RT001412SKNH03-K	12		UL94 V-0	Flange	Shielded	Female Sockets Receptacle		N (Normal)	Dust Tight Water Resistant Waterproof	IP67 IP69K	Nickel	Nylon 6/6 PA66 Polyamide	Panel Mount			-40 °C	105 °C	Bayonet Lock	12 mm	14 mm		Metal			Zinc Die Cast	Gold	250 V		Flash	13 A	Crimp	Silver	Brass	Aerospace Automation Industrial Telecom Transportation
McGill Microwave Systems RT001412SNH-K	12			Flange		Female Sockets Receptacle		N (Normal)	Dust Tight Waterproof	IP67	Nickel		Panel Mount			-40 °C	105 °C	Bayonet Lock	12 mm	14 mm		Metal			Zinc Die Cast	Gold	250 V	DC	Flash	13 A	Crimp	Silver
McGill Microwave Systems RT001412SNHEC03R	12	Backshell	UL94 V-0	Flange	Shielded	Receptacle Housing	16 S	N (Normal)	Dust Tight Waterproof	IP67	Nickel	Thermoplastic	Panel Mount	Crimp	Circular	-40 °C	125 °C	Bayonet Lock	12 mm	14 mm	Contacts Not Included		For Female Sockets	Silver	Zinc Alloy

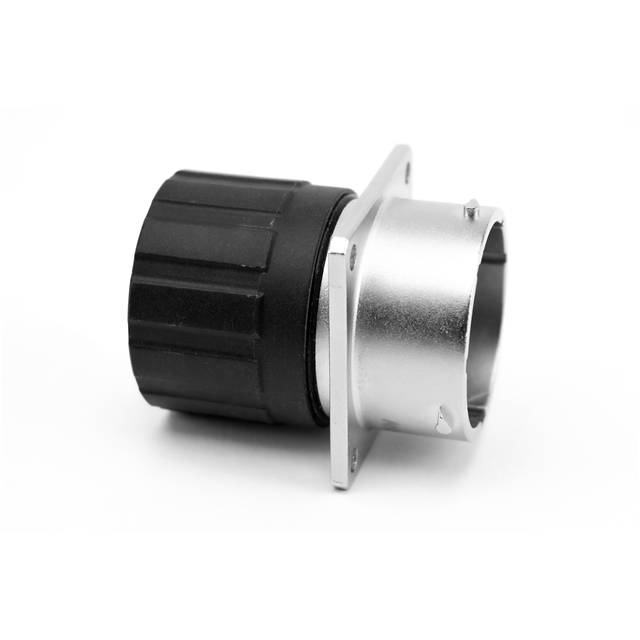

McGill Microwave Systems RT001412SNHEC	12	Backshell	UL94 V-0	Flange	Shielded	Receptacle Housing	16 S	N (Normal)	Dust Tight Waterproof	IP67	Nickel	Thermoplastic	Panel Mount	Crimp	Circular	-40 °C	105 °C	Bayonet Lock	12 mm	14 mm	Contacts Not Included		For Female Sockets	Silver	Zinc Alloy

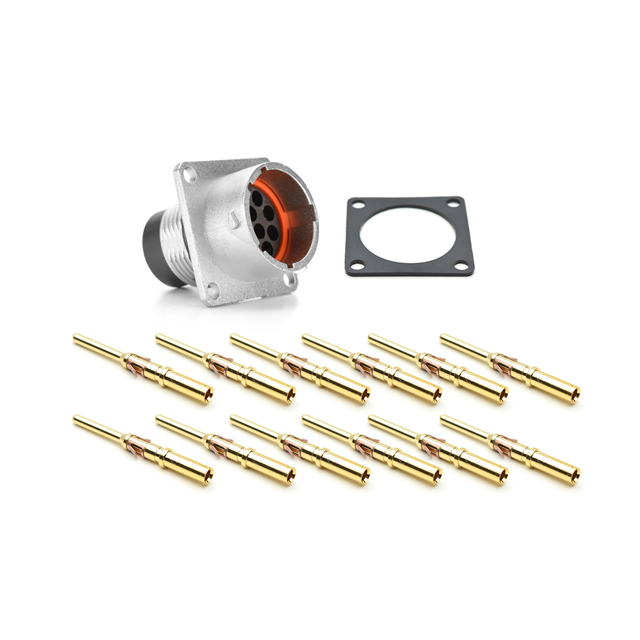

McGill Microwave Systems RT001412PKNH03-K	12		UL94 V-0	Flange	Shielded	Male Pins Receptacle		N (Normal)	Dust Tight Water Resistant Waterproof	IP67 IP69K	Nickel	Nylon 6/6 PA66 Polyamide	Panel Mount			-40 °C	105 °C	Bayonet Lock	12 mm	14 mm		Metal			Zinc Die Cast	Gold	250 V		Flash	13 A	Crimp	Silver	Brass	Aerospace Automation Industrial Telecom Transportation
