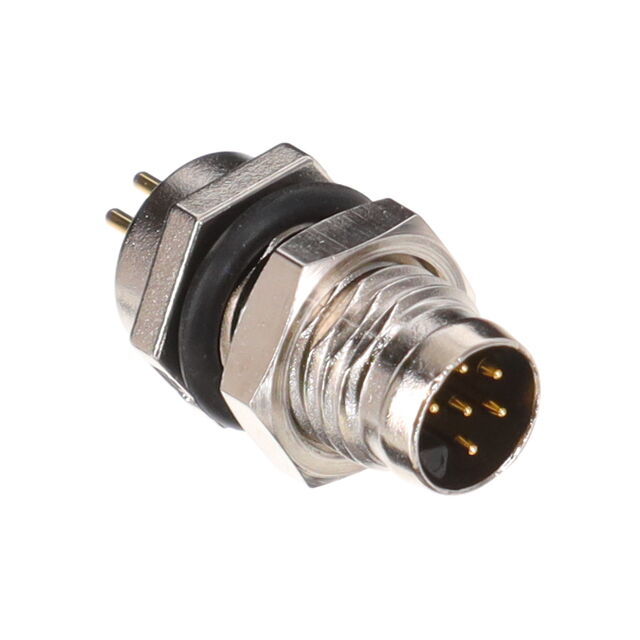

8A-06PMMP Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
M8 CONN WITH KEY
| Part | Contact Finish - Mating | Termination | Shielding | Current Rating | Contact Material | Shell Material | Ingress Protection Description | Ingress Protection IP Rating | Mounting Type | Voltage Rating | Fastening Type | Insert Material | Connector Type | Primary Material | Mounting Feature | Material Flammability Rating | Orientation | Operating Temperature (Min) | Operating Temperature (Max) | Number of Positions | Shell Size - Insert | Color | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Gold | Solder | Shielded | 1.5 A | Copper Alloy | Zinc Alloy | Dust Tight Waterproof | IP67 | Panel Mount Through Hole | 30 V | Threaded | Glass Filled Nylon PA Polyamide | Male Pins Receptacle | Metal | Bulkhead Front Side Nut | UL94 V-0 | Keyed | -40 °C | 105 °C | 6 | M8-6 | Silver | Nickel |
