B09B-PNI Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

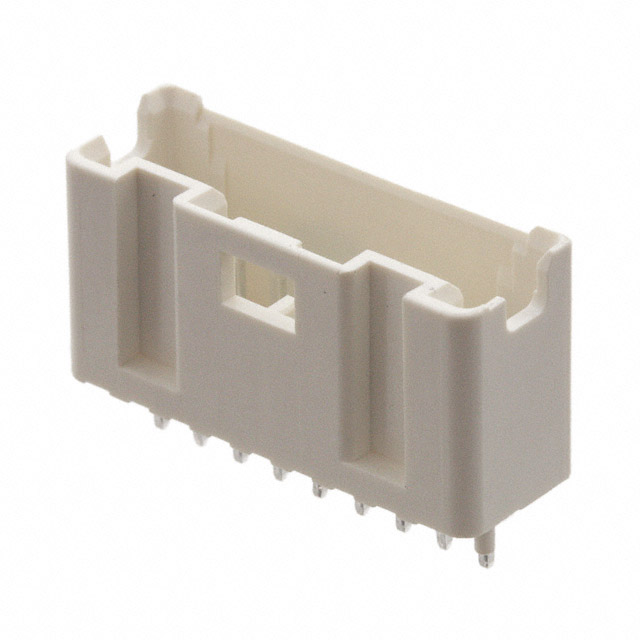

CONN HEADER VERT 9POS 2MM
| Part | Mated Stacking Height | Insulation Height | Contact Length - Post | Contact Finish - Post | Number of Positions Loaded | Current Rating | Connector Type | Number of Positions | Shrouding | Contact Finish - Mating | Number of Rows | Fastening Type | Mounting Type | Pitch - Mating | Contact Type | Insulation Material | Style | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Insulation Color | Contact Shape | Features | Voltage Rating | Material Flammability Rating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 12.25 mm | 0.402 in | 0.134 in | Tin | All | 3 A | Header | 9 | Shrouded - 4 Wall | Tin | 1 | Latch Lock | Through Hole | 0.079 in | Male Pin | Glass Filled Nylon 6/6 Polyamide (PA66) | Board Cable/Wire | Copper Alloy | 85 °C | -25 °C | Natural | Square | Board Guide | 100 VAC | UL94 V-0 | Press-Fit Solder |
