C4D08120 Series

Catalog

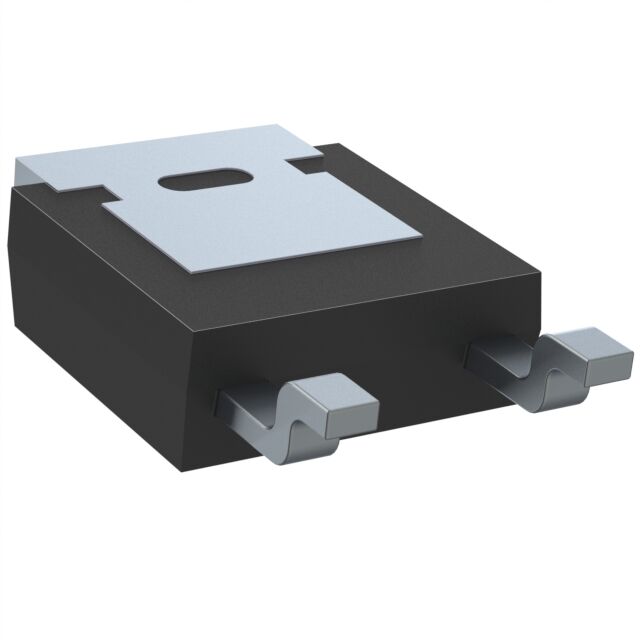

DIODE SCHOTTKY SIC 1.2KV 24.5A 3-PIN(2+TAB) TO-252 TUBE

Part	Mounting Type	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Package Name	Capacitance	Current - Reverse Leakage	Technology	Voltage - Forward (Vf) (Max)	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Package / Case
Wolfspeed, Inc. C4D08120E	Surface Mount	175 °C	-55 °C	TO-252-2	560 pF	250 µA	SiC (Silicon Carbide) Schottky	3 V	24.5 A	1200 V	500 mA	No Recovery Time	500 mA 500 mA	DPAK (2 Leads + Tab) SC-63 TO-252-3
Wolfspeed, Inc. C4D08120E-TR	Surface Mount	175 °C	-55 °C	TO-252-2	560 pF	250 µA	SiC (Silicon Carbide) Schottky	1.8 V	24.5 A	1200 V	500 mA	No Recovery Time	500 mA 500 mA	DPAK (2 Leads + Tab) SC-63 TO-252-3
Wolfspeed, Inc. C4D08120A	Through Hole	175 °C	-55 °C	TO-220-2	560 pF	250 µA	SiC (Silicon Carbide) Schottky	1.8 V	24.5 A	1200 V	500 mA	No Recovery Time	500 mA 500 mA	TO-220-2
