T4140L Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

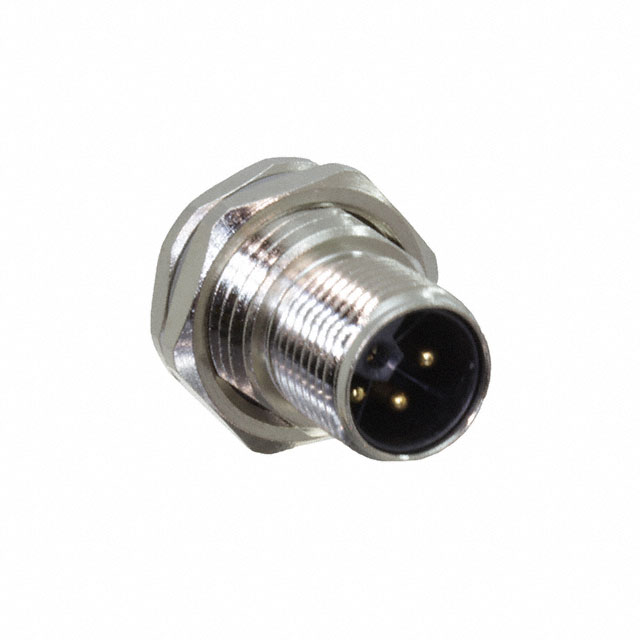

CIRCULAR METRIC CONNECTORS M12,REAR MOUNT,MALE L,3P+PE,SOLDER PCB
| Part | Ingress Protection Description | Ingress Protection IP Rating | Mounting Feature | Mounting Type | Shell Size - Insert | Operating Temperature (Min) | Operating Temperature (Max) | Connector Type | Shielding | Shell Material | Material Flammability Rating | Contact Finish - Mating | Orientation | Current Rating | Shell Finish | Color | Termination | Voltage Rating | Number of Positions | Position Types | Primary Material | Fastening Type | Insert Material | Contact Material | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Dust Tight Waterproof | IP67 | Bulkhead Front Side Nut | Panel Mount Through Hole | M12-4 | -40 °C | 85 °C | Male Pins Plug | Unshielded | Copper Alloy | UL94 V-0 | Gold | L | 16 A | Nickel | Silver | Solder | 63 V | 4 | PE Power | Metal | Threaded | LCP Liquid Crystal Polymer | Copper Alloy | Automation Control Industrial Lighting |
