336209 Series

Catalog

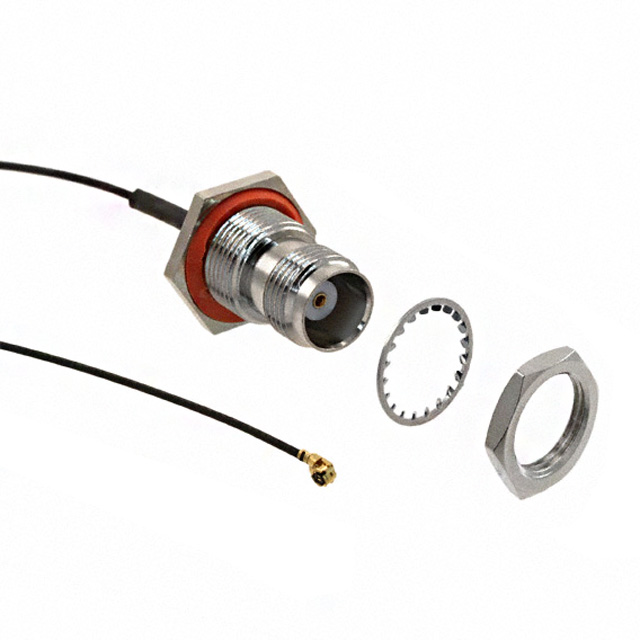

RF / COAXIAL CABLE ASSEMBLY, 90° AMC PLUG TO TNC BULKHEAD JACK, 1.13MM, 50 OHM, 7.87 ", 200 MM

Part	Color	Length	2nd Contact Gender	Overall Impedance	Frequency - Max	1st Connector	2nd Connector Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating	2nd Connector	Style	1st Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type Size	Cable Type	Cable Outer Diameter
McGill Microwave Systems 336209-12-0200	Black	7.874 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm
McGill Microwave Systems 336209-12-0050	Black	1.969 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm

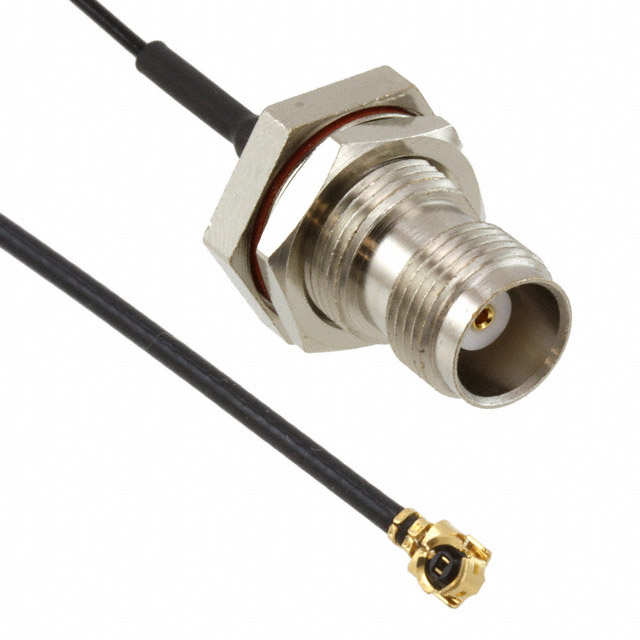

McGill Microwave Systems 336209-13-0300	Black	11.811 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm
McGill Microwave Systems 336209-12-0100	Black	3.937 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.13 mm
McGill Microwave Systems 336209-13-0250	Black	9.843 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm

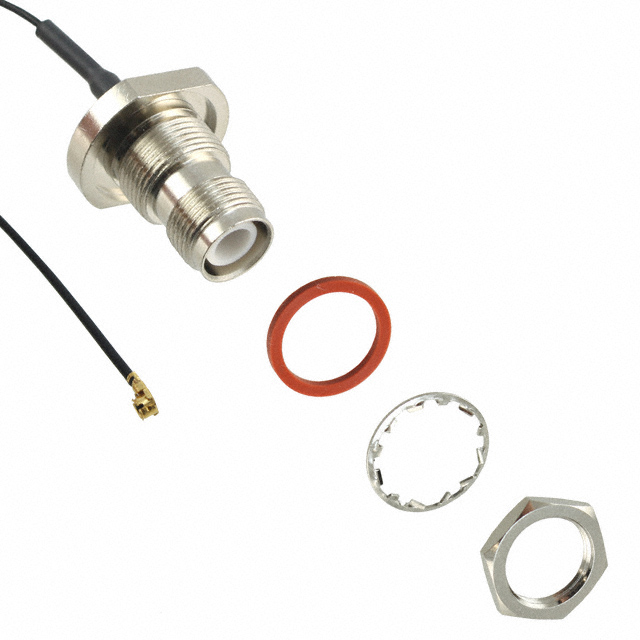

McGill Microwave Systems 336209-13-0100	Black	3.937 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm
McGill Microwave Systems 336209-13-0050	Black	1.969 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm
McGill Microwave Systems 336209-13-0150	Black	5.906 in	Female	50 Ohms	6000 MHz	AMC Plug Right Angle U.FL (UMCC)	Bulkhead - Front Side Nut	Dust Tight Waterproof	IP67	TNC Jack	AMC to TNC U.FL (UMCC)	Female	Panel Mount	Free Hanging (In-Line)	1.32	1.32mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	1.32 mm
