RT00128 Series

Catalog

RECEPTACLE, SQUARE FLANGE, 8 POS

Part	Contact Type	Features	Type	Shell Material	Note	Number of Positions	Shell Finish	Mounting Feature	Housing Color	Fastening Type	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert Length	Shell Size - Insert Width	Material Flammability Rating	Orientation	Shielding	Insert Material	Contact Shape	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Contact Size	Current Rating	Contact Finish Thickness - Mating	Primary Material	Termination	Contact Material	Color	Applications	Contact Finish - Mating	Voltage Rating	Voltage Rating (Type)

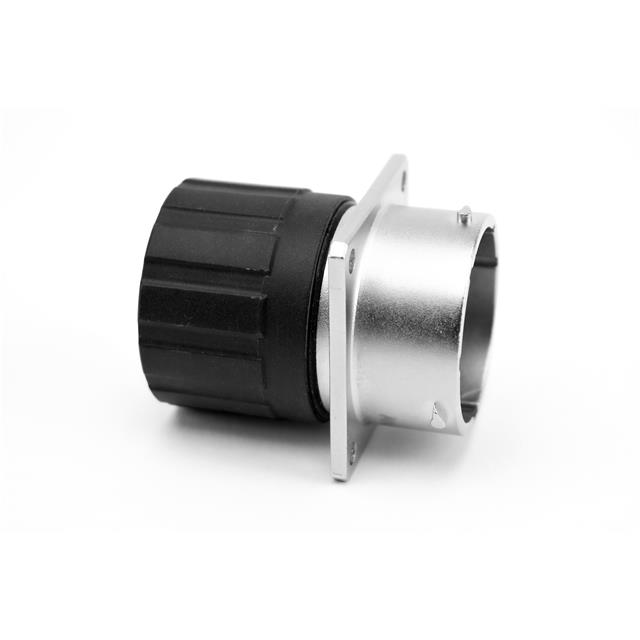

McGill Microwave Systems RT00128SNHEC03R	Crimp	Backshell	For Female Sockets	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	125 °C	-40 °C	16 S

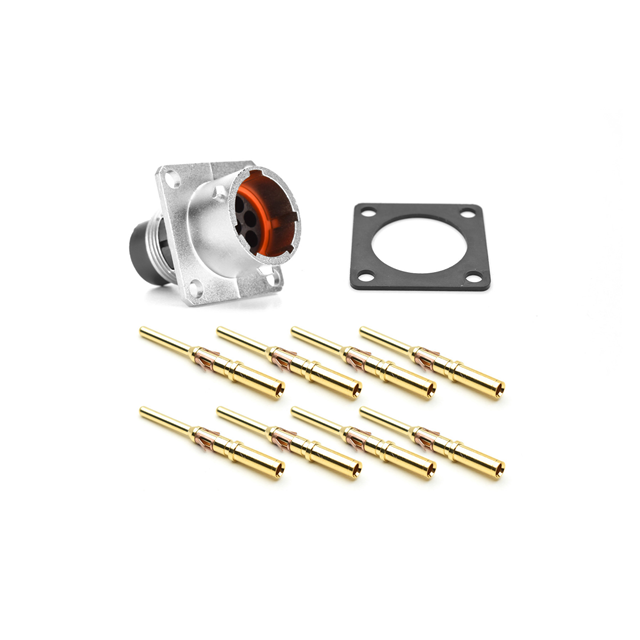

McGill Microwave Systems RT00128PKNH03-K				Zinc Die Cast		8	Nickel	Flange		Bayonet Lock	Panel Mount	Dust Tight Water Resistant Waterproof	IP67 IP69K	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Nylon 6/6 PA66 Polyamide		Male Pins Receptacle	105 °C	-40 °C		13 A	Flash	Metal	Crimp	Brass	Silver	Aerospace Automation Industrial Telecom Transportation	Gold	250 V
McGill Microwave Systems RT00128SNHEC03	Crimp	Cap (Cover)	For Female Sockets	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	125 °C	-40 °C	16 S			Metal
McGill Microwave Systems RT00128PNH-K				Zinc Die Cast		8	Nickel	Flange		Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm		N (Normal)				Male Pins Receptacle	105 °C	-40 °C		13 A	Flash	Metal	Crimp		Silver		Gold	250 V	DC

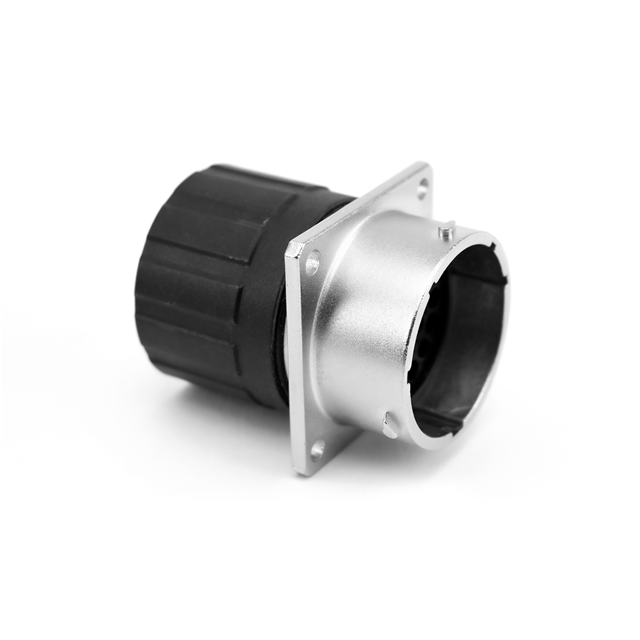

McGill Microwave Systems RT00128PNHEC	Crimp	Backshell	For Male Pins	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	105 °C	-40 °C	16 S

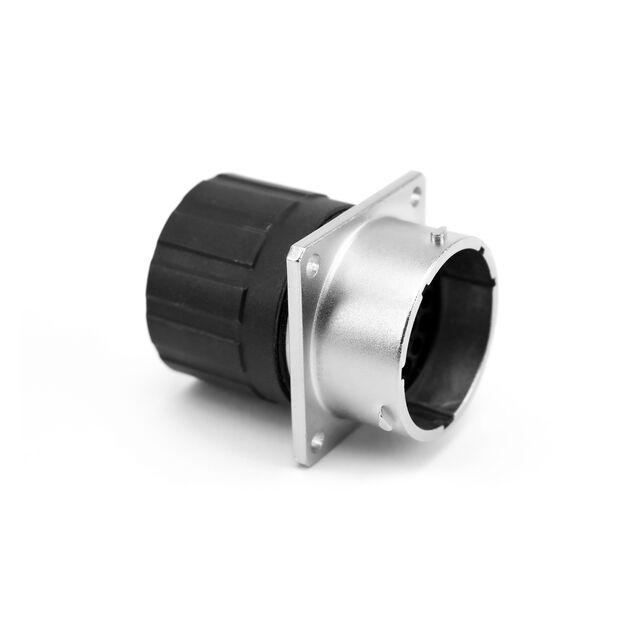

McGill Microwave Systems RT00128PNHECR	Crimp	Cap (Cover)	For Male Pins	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	105 °C	-40 °C	16 S			Metal
McGill Microwave Systems RT00128PNHEC03R	Crimp	Backshell	For Male Pins	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	125 °C	-40 °C	16 S
McGill Microwave Systems RT00128PNH	Crimp		For Male Pins	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	105 °C	-40 °C	16 S

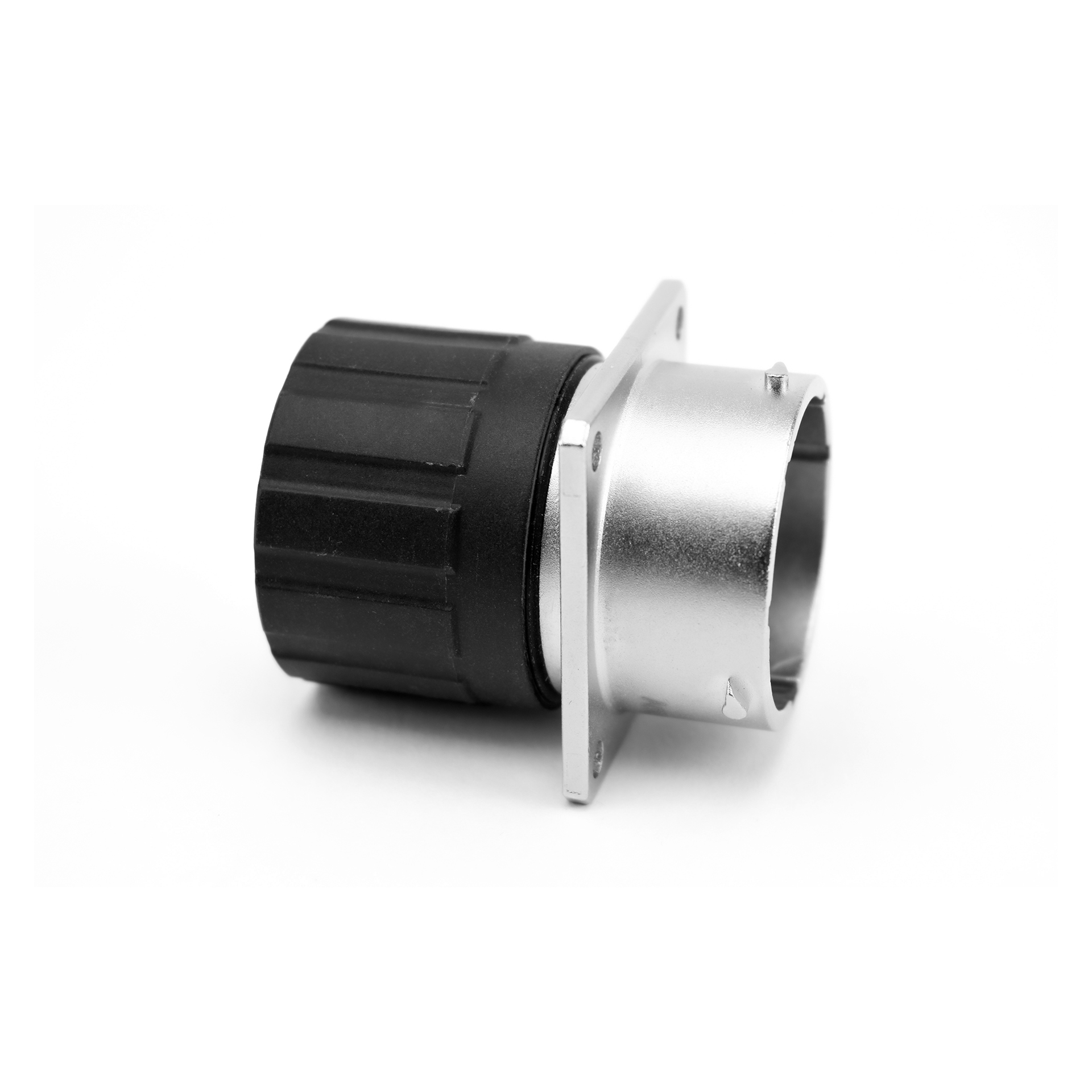

McGill Microwave Systems RT00128SNHECR	Crimp	Cap (Cover)	For Female Sockets	Zinc Alloy	Contacts Not Included	8	Nickel	Flange	Silver	Bayonet Lock	Panel Mount	Dust Tight Waterproof	IP67	12 mm	8 mm	UL94 V-0	N (Normal)	Shielded	Thermoplastic	Circular	Receptacle Housing	105 °C	-40 °C	16 S			Metal
