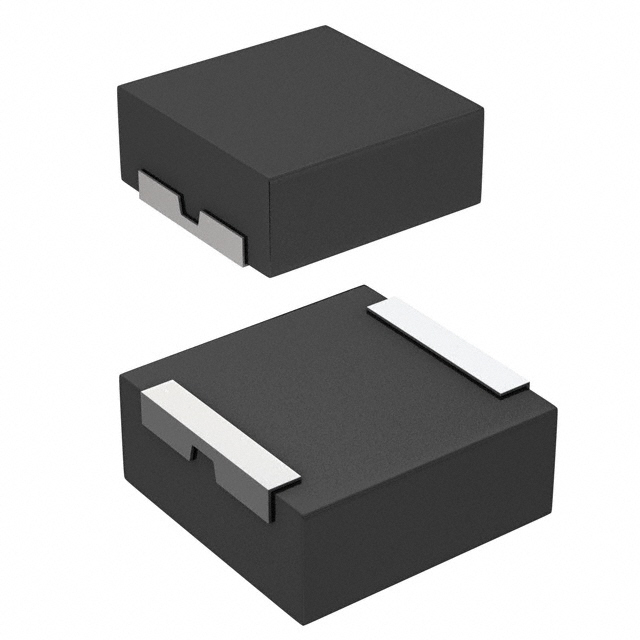

IHLP-6767GZ-11 Series
Manufacturer: Vishay Dale
Beta
⌘K
POWER INDUCTORS - SMD 15UH 20% 500KHZ
| Part | Inductance Frequency - Test | Tolerance | Mounting Type | Type | DC Resistance (DCR) (Max) | Height - Seated (Max) | Current Rating | Current - Saturation (Isat) | Package / Case | Frequency - Self Resonant | Inductance | Shielding | Size / Dimension Length | Size / Dimension Width | Operating Temperature (Max) | Operating Temperature (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Dale | 100 kHz | 20 % | Surface Mount | Molded | 14.4 mOhm | 0.276 in | 14 A | 12 A | Nonstandard | 7.5 MHz | 15 µH | Shielded | 0.675 in | 0.675 in | 125 °C | -55 °C |
 Vishay Dale | 100 kHz | 20 % | Surface Mount | Molded | 21 mOhm | 0.276 in | 12 A | 9.5 A | Nonstandard | 4.3 MHz | 22 µH | Shielded | 0.675 in | 0.675 in | 125 °C | -55 °C |
